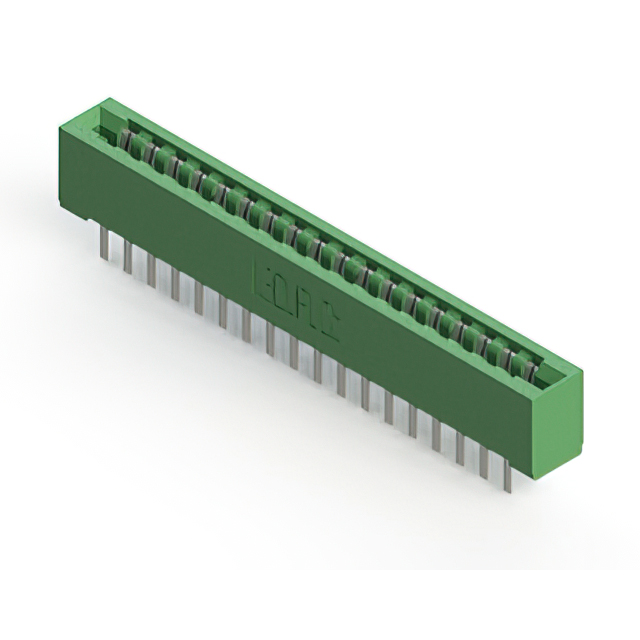

807-036-422-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-036-422-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-036-422-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-036 Series
...
| Part | Contact Type | Read Out | Number of Rows | Pitch [x] | Pitch [x] | Flange Feature | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Card Type | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Contact Material | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Color | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 36 | Tin | Non Specified - Dual Edge | 1 | 125 °C | -40 °C | 72 | Solder Eyelet(s) | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | |||||||
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Through Hole | 36 | Tin | Non Specified - Dual Edge | 1 | 125 °C | -40 °C | 72 | Solder Eyelet(s) | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | ||||||||
EDAC Inc. | Semi Bellows | Single | 1 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Through Hole | 36 | Gold | Non Specified - Single Edge | 1 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Semi Bellows | Single | 2 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | 18 | Gold | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Through Hole | 18 | Tin | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | ||||||||
EDAC Inc. | Semi Bellows | Single | 2 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole Right Angle | 18 | Tin | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole | 18 | Tin | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.25 mm | 0.128 in | |||||
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | 18 | Gold | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.96 mm | 0.156 in | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | Semi Bellows | Dual | 2 | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Through Hole | 36 | Gold | Non Specified - Dual Edge | 1 | 125 °C | -40 °C | 72 | Wire Wrap | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Semi Bellows | Single | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Through Hole Right Angle | 36 | Tin | Non Specified - Single Edge | 1 | 125 °C | -40 °C | 36 | Solder | Copper Alloy | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 50.90 | |
Description
General part information
807-036 Series
36 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
