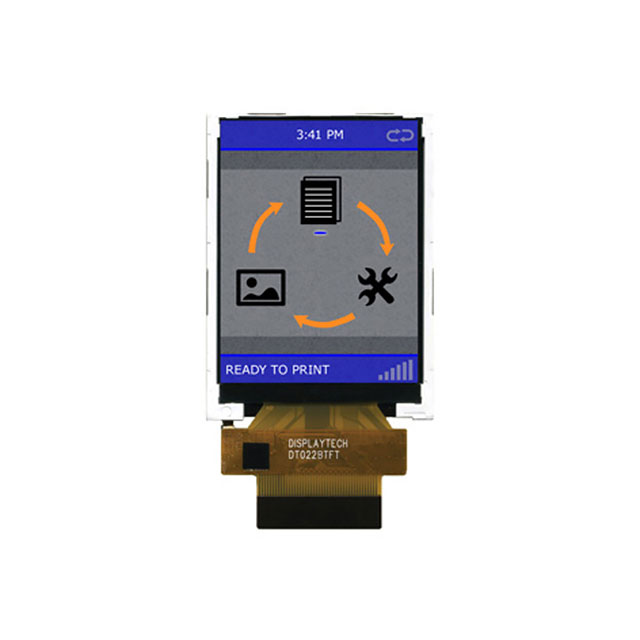

DT022BTFT

Active

Displaytech

LCD DISP TFT 2.2" 240X320

Search across all available documentation for this part.

Active

Displaytech

LCD DISP TFT 2.2" 240X320

Technical Specifications

Parameters and characteristics commom to parts in this series

2.2 INCH TFT LCD MOD

Part	Viewing Area [y]	Viewing Area [x]	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Backlight	Diagonal Screen Size [custom]	Diagonal Screen Size	Graphics Color	Display Type	Interface
Displaytech DT022CTFT	33.84 mm	45.12 mm	QVGA	320 pixels	240 pixels	Transmissive	LED	2.2 in	55.88 mm	Blue, Green, Red	TFT - Color
Displaytech DT022BTFT	45.12 mm	33.84 mm		240 pixels	320	Transmissive	LED	2.2 in	55.88 mm	Blue, Green, Red	TFT - Color	Parallel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel 2.2" (55.88mm) 240 x 320
