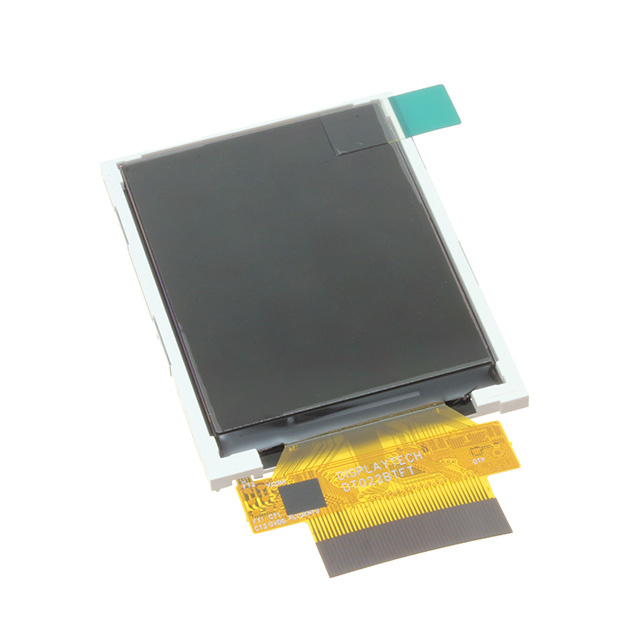

DT022CTFT
ActiveDisplaytech
2.2 INCH TFT LCD MOD
Deep-Dive with AI
Search across all available documentation for this part.
DT022CTFT
ActiveDisplaytech
2.2 INCH TFT LCD MOD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DT022CTFT |
|---|---|
| Backlight | LED |
| Diagonal Screen Size | 55.88 mm |
| Diagonal Screen Size [custom] | 2.2 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Graphics Color | Green, Red, Blue |
| Viewing Area [x] | 45.12 mm |
| Viewing Area [y] | 33.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.41 | |
| 10 | $ 21.46 | |||
| 100 | $ 18.75 | |||
| 500 | $ 17.19 | |||
Description
General part information
DT022CTFT
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB) 2.2" (55.88mm) 320 x 240 (QVGA)
