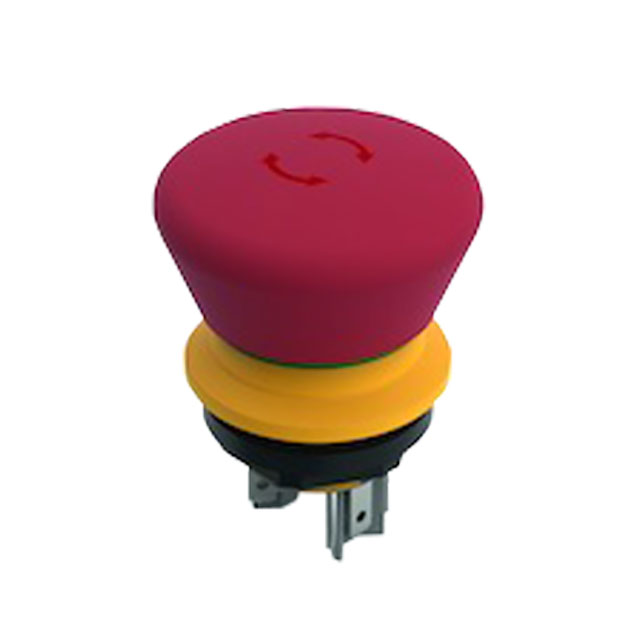

1.15.213.001/0000

Active

RAFI USA

SWITCH E-STOP TWIST RESET 5A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.15.213.001/0000

Active

RAFI USA

SWITCH E-STOP TWIST RESET 5A 35V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.213.001/0000	1.15.213 Series

Circuit	SPST-NC	SPST-NC, DPST-NC, 3PST-2NC/1NO
Current Rating (Amps)	2 A, 5 A	2 - 100 A
Features	Status Indicator	Status Indicator
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Voltage Rating - DC	35 V	35 V

1.15.213 Series

SWITCH E-STOP TWIST RESET 5A 35V

Part	Mounting Type	Circuit	Termination Style	Termination Style	Termination Style	Ingress Protection	Features	Current Rating (Amps)	Switch Function	Reset Operation	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
RAFI USA 1.15.213.001/0000	Panel Mount, Front	SPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.054/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.004/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.014/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.013/0000	Panel Mount, Front	3PST-2NC/1NO	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	Off-On, On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.011/0000	Panel Mount, Front	SPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.003/0000	Panel Mount, Front	3PST-2NC/1NO	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	Off-On, On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.012/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.28
		5	$ 45.65
		10	$ 43.05
		25	$ 39.83
		50	$ 37.55
		100	$ 35.40

Description

General part information

1.15.213 Series

SWITCH E-STOP TWIST RESET 5A 35V

Documents

Technical documentation and resources
