1.15.213.054/0000

Active

RAFI USA

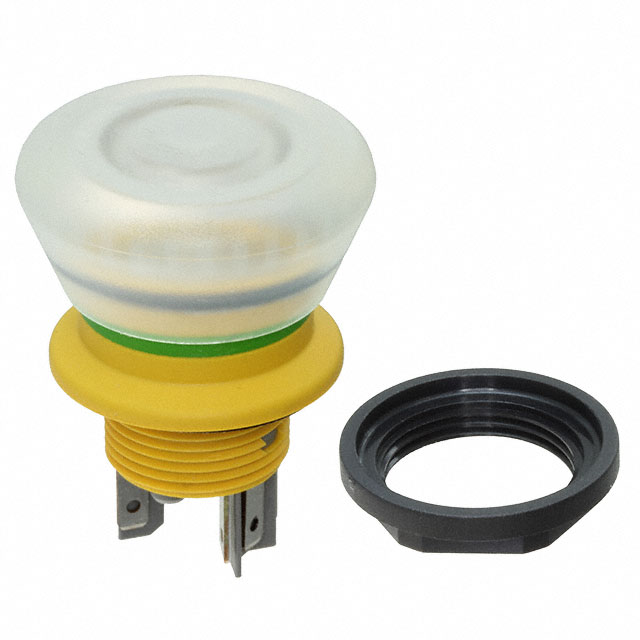

SWITCH E-STOP TWIST RESET 5A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.15.213.054/0000

Active

RAFI USA

SWITCH E-STOP TWIST RESET 5A 35V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.84
		5	$ 57.48
		10	$ 54.21
		25	$ 50.16
		50	$ 47.29
		100	$ 44.57

Description

General part information

1.15.213 Series

SWITCH E-STOP TWIST RESET 5A 35V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.213.054/0000	1.15.213 Series

Circuit	DPST-NC	SPST-NC, DPST-NC, 3PST-2NC/1NO
Current Rating (Amps)	2 A, 5 A	2 - 100 A
Features	Status Indicator	Status Indicator
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Voltage Rating - DC	35 V	35 V

1.15.213 Series

SWITCH E-STOP TWIST RESET 5A 35V

Part	Mounting Type	Circuit	Termination Style	Termination Style	Termination Style	Ingress Protection	Features	Current Rating (Amps)	Switch Function	Reset Operation	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
RAFI USA 1.15.213.001/0000	Panel Mount, Front	SPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.054/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.004/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.014/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.013/0000	Panel Mount, Front	3PST-2NC/1NO	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	Off-On, On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.011/0000	Panel Mount, Front	SPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.003/0000	Panel Mount, Front	3PST-2NC/1NO	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	2 A, 5 A	Off-On, On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
RAFI USA 1.15.213.012/0000	Panel Mount, Front	DPST-NC	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	Status Indicator	100 mA	On-Off	Twist	16.2 mm	70 °C	-25 °C	35 V
