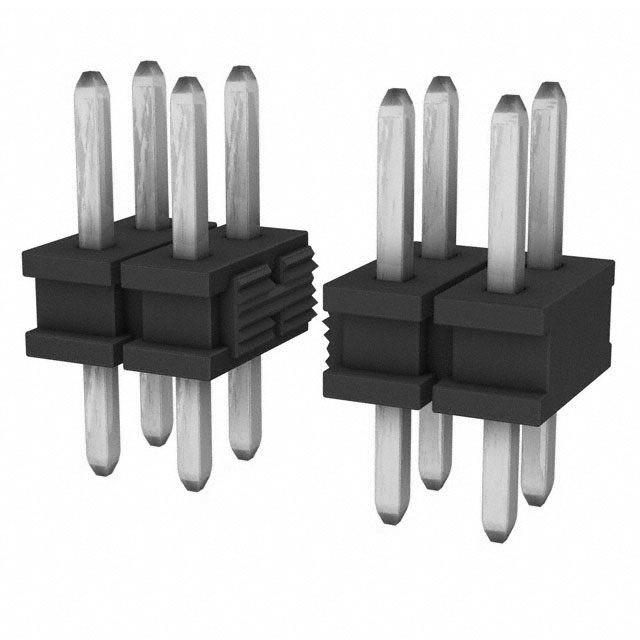

TMMH-105-01-T-D

Active

Samtec Inc.

2MM LOW PROFILE STRIPS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMMH-105-01-T-D

Active

Samtec Inc.

2MM LOW PROFILE STRIPS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMH-105-01-T-D

null

TMMH-105 Series

Part	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Termination	Connector Type	Fastening Type	Contact Shape	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Number of Positions	Contact Material	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Features
Samtec Inc. TMMH-105-04-S-D-RA	Through Hole Right Angle	Gold	Tin	1.91 mm	0.075 in	2	0.157 in	4 mm	Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	30 Áin	0.76 Ám	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0	0.103 in	2.62 mm	-55 °C	125 °C	Board to Board Cable
Samtec Inc. TMMH-105-01-G-D-RA
Samtec Inc. TMMH-105-01-F-D	Through Hole	Gold	Tin	3.2 mm	0.126 "	2			Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	3 µin	0.076 µm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin			2.47 mm	-55 °C	125 °C	Board to Board Cable	0.097 in	0.079 in	2 mm	0.302 in	7.67 mm
Samtec Inc. TMMH-105-01-F-DV-A-M-TR	Surface Mount	Gold	Tin	3.2 mm	0.126 "	2			Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	3 µin	0.076 µm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0			-55 °C	125 °C	Board to Board Cable		0.079 in	2 mm			Board Guide Pick and Place
Samtec Inc. TMMH-105-01-T-D
Samtec Inc. TMMH-105-01-L-DV-A-M	Surface Mount	Gold	Tin	3.2 mm	0.126 "	2			Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	10 çin	0.25 çm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0			-55 °C	125 °C	Board to Board Cable		0.079 in	2 mm			Board Guide Pick and Place
Samtec Inc. TMMH-105-01-F-D-RA	Through Hole Right Angle	Gold	Tin	3.2 mm	0.126 "	2	0.157 in	4 mm	Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	3 µin	0.076 µm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin		0.103 in	2.62 mm	-55 °C	125 °C	Board to Board Cable
Samtec Inc. TMMH-105-01-T-D-RA	Through Hole Right Angle		Tin	3.2 mm	0.126 "	2	0.157 in	4 mm	Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm			Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0		2.34 mm	-55 °C	105 ░C	Board to Board Cable	0.092 in
Samtec Inc. TMMH-105-01-F-DV-A	Surface Mount	Gold	Tin	3.2 mm	0.126 "	2			Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	3 µin	0.076 µm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0			-55 °C	125 °C	Board to Board Cable		0.079 in	2 mm			Board Guide
Samtec Inc. TMMH-105-01-L-DV-LC	Surface Mount	Gold	Tin	3.2 mm	0.126 "	2			Solder	Cuttable Header	Push-Pull	Square	All	0.079 in	2 mm	10 çin	0.25 çm	Black	Unshrouded	10	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Male Pin	UL94 V-0			-55 °C	125 °C	Board to Board Cable		0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.03

Description

General part information

TMMH-105 Series

Connector Header position

Documents

Technical documentation and resources
