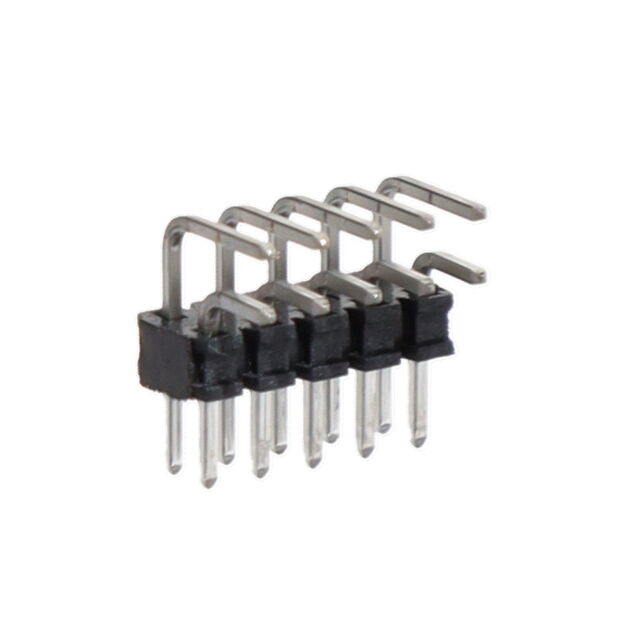

TMMH-105-01-T-D-RA

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS LOW PROFILE HEADER STRIPS WITH END SHROUD, 2.00 MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

TMMH-105-01-T-D-RA

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS LOW PROFILE HEADER STRIPS WITH END SHROUD, 2.00 MM PITCH

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMH-105-01-T-D-RA

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	2.34 mm
Contact Length - Post	0.092 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMMH-110 Series

Headers & Wire Housings Low Profile Header S trips 2.00 mm Pitch

...

Part	Number of Positions	Features	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Material	Contact Type	Insulation Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Mating	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Connector Type	Fastening Type	Shrouding	Mounting Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Number of Positions Loaded [custom]
Samtec Inc. TMMH-109-01-F-DV-M	18	Pick and Place	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Surface Mount
Samtec Inc. TMMH-150-06-L-Q			0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)		3.2 mm	0.126 "	Board to Board Cable	10 çin	0.25 çm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Through Hole	0.139 in	3.53 mm	8.74 mm	0.344 in
Samtec Inc. TMMH-122-01-G-D-ES	44	End Shrouds	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	20 µin	0.51 µm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Gold	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Through Hole	0.097 in	2.47 mm	7.67 mm	0.302 in	3 µin	0.076 µm
Samtec Inc. TMMH-112-05-L-DV-EBC	24	Board Lock End Shrouds	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	1.65 mm	0.065 in	Board to Board Cable	10 çin	0.25 çm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Latch Lock	Unshrouded	Surface Mount
Samtec Inc. TMMH-110-04-S-D-EL	20	Board Lock End Shrouds	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2			Board to Board Cable	30 Áin	0.76 Ám	-55 °C	125 °C	0.079 in	2 mm	Gold		Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Latch Lock	Unshrouded	Through Hole	0.101 in	2.57 mm	6.48 mm	0.255 in			1.9 mm	0.075 in
Samtec Inc. TMMH-110-01-L-D-015	20		0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	10 çin	0.25 çm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square		Tin	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Through Hole	0.097 in	2.47 mm	7.67 mm	0.302 in					19
Samtec Inc. TMMH-115-01-F-D-RA-ES	30	End Shrouds	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	-55 °C	125 °C	0.25 in	6.35 mm	Gold	UL94 V-0	Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Through Hole Right Angle	0.139 in	3.53 mm
Samtec Inc. TMMH-103-01-F-D-003	6		0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	3 µin	0.076 µm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square		Tin	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Through Hole	0.097 in	2.47 mm	7.67 mm	0.302 in						5
Samtec Inc. TMMH-122-04-G-DV	44		0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2			Board to Board Cable	20 µin	0.51 µm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Gold	0.079 in	2 mm	Black	Cuttable Header	Push-Pull	Unshrouded	Surface Mount					3 µin	0.076 µm	1.9 mm	0.075 in
Samtec Inc. TMMH-122-01-L-DV-EBC-M	44	Board Lock End Shrouds Pick and Place	0.079 in	2 mm	Solder	Phosphor Bronze	Male Pin	Liquid Crystal Polymer (LCP)	2	3.2 mm	0.126 "	Board to Board Cable	10 çin	0.25 çm	-55 °C	125 °C	0.079 in	2 mm	Gold	UL94 V-0	Square	All	Tin	0.079 in	2 mm	Black	Cuttable Header	Latch Lock	Unshrouded	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.13
		50	$ 0.88
		100	$ 0.71
		500	$ 0.60
		1000	$ 0.56
		2000	$ 0.41
		5000	$ 0.40
Sager	N/A	1	$ 0.79
		50	$ 0.65
		100	$ 0.54
		500	$ 0.45
		1000	$ 0.40
		2000	$ 0.34
		5000	$ 0.28
		10000	$ 0.21

Description

General part information

TMMH-110 Series

Headers & Wire Housings Low Profile Header S trips 2.00 mm Pitch

Documents

Technical documentation and resources

Datasheet

Document

Datasheet

Low Profile Header Strips with End Shroud, 2.00 mm Pitch

TMMH Datasheet

Datasheet
