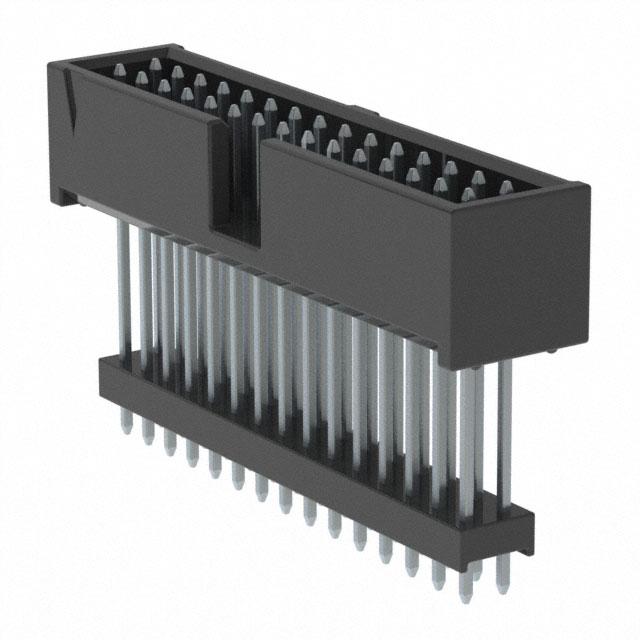

ZSS-115-04-T-D-800
ActiveSamtec Inc.
CONN HEADER VERT 30POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
ZSS-115-04-T-D-800
ActiveSamtec Inc.
CONN HEADER VERT 30POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZSS-115-04-T-D-800 |
|---|---|
| Connector Type | Elevated, Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 6.35 mm |
| Contact Length - Mating | 0.25 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.8 in |
| Insulation Height | 20.32 mm |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.93 in |
| Overall Contact Length | 23.62 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
ZSS-115 Series
...
| Part | Fastening Type | Overall Contact Length | Overall Contact Length | Current Rating (Amps) | Insulation Height | Insulation Height | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Material Flammability Rating | Insulation Material | Style | Connector Type | Contact Type | Contact Shape | Termination | Contact Length - Mating | Contact Length - Mating | Features | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions | Number of Rows | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Contact Length - Post [x] | Overall Contact Length [x] | Overall Contact Length [x] | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Push-Pull | 0.93 in | 23.62 mm | 3 A | 0.8 in | 20.32 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Black | UL94 V-0 | Polyester Glass Filled | Board to Board Cable | Elevated Header | Male Pin | Square | Solder | 6.35 mm | 0.25 in | Keying Slot | Phosphor Bronze | 105 ░C | -55 °C | 0.1 in | 2.54 mm | Through Hole | 30 | 2 | All | 0.13 in | 3.3 mm | Tin | ||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Push-Pull | 3 A | 0.504 in | 12.8 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Black | UL94 V-0 | Polyester Glass Filled | Board to Board Cable | Elevated Header | Male Pin | Square | Kinked Pin Solder | 6.35 mm | 0.25 in | Keying Slot | Phosphor Bronze | 125 °C | -55 °C | 0.1 in | 2.54 mm | Through Hole | 30 | 2 | All | 3.2 mm | Tin | 0.126 in | 0.63 " | 16 mm | Gold | 10 çin | 0.25 çm | |||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||
Samtec Inc. | Push-Pull | 3 A | 0.45 in | 11.43 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Black | UL94 V-0 | Polyester Glass Filled | Board to Board Cable | Elevated Header | Male Pin | Square | Solder | 6.35 mm | 0.25 in | Keying Slot | Phosphor Bronze | 125 °C | -55 °C | 0.1 in | 2.54 mm | Through Hole | 30 | 2 | All | 0.18 in | 4.57 mm | Tin | 0.63 " | 16 mm | Gold | 30 Áin | 0.76 Ám | |||
Samtec Inc. | Push-Pull | 1.23 in | 31.24 mm | 3 A | 1 in | 25.4 mm | Shrouded - 4 Wall | 2.54 mm | 0.1 in | Black | UL94 V-0 | Polyester Glass Filled | Board to Board Cable | Elevated Header | Male Pin | Square | Solder | 6.35 mm | 0.25 in | Keying Slot | Phosphor Bronze | 125 °C | -55 °C | 0.1 in | 2.54 mm | Through Hole | 30 | 2 | All | 0.23 in | 5.84 mm | Tin | Gold | 10 çin | 0.25 çm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.64 | |
Description
General part information
ZSS-115 Series
Connector Header Through Hole 30 position 0.100" (2.54mm)
Documents
Technical documentation and resources
