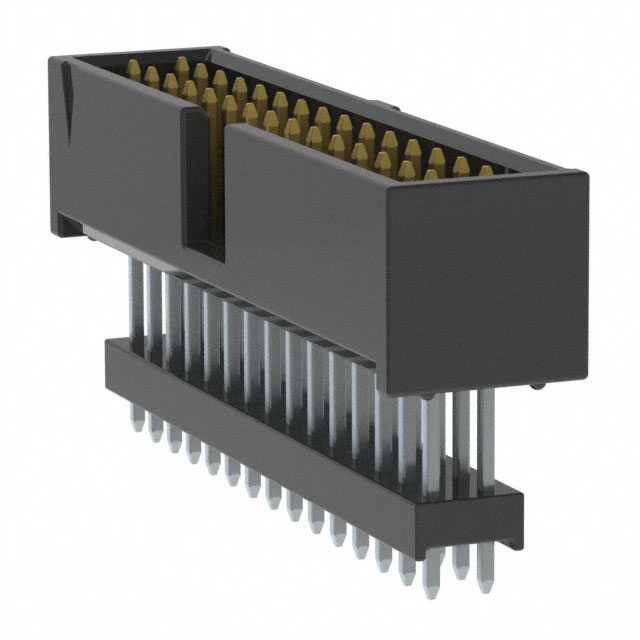

ZSS-115-02-S-D-640

Active

Samtec Inc.

CONN HDR .100" 30POS

ZSS-115-02-S-D-640

Active

Samtec Inc.

CONN HDR .100" 30POS

Description Specifications Series Pricing CAD Documents

Description

General part information

ZSS-115 Series

Connector Header position

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-115-02-S-D-640

Connector Type	Header, Elevated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

ZSS-115 Series

...

Part	Shrouding	Termination	Pitch - Mating	Mounting Type	Contact Type	Number of Rows	Number of Positions	Contact Finish - Post	Material Flammability Rating	Contact Shape	Fastening Type	Style	Contact Material	Contact Finish - Mating	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Connector Type	Insulation Height	Number of Positions Loaded	Overall Contact Length	Current Rating	Features	Contact Length - Mating	Contact Length - Post	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Samtec Inc. ZSS-115-02-S-D-640	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Tin	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header
Samtec Inc. ZSS-115-07-L-D-1140	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	1.14 in	All	1.23 in	3 A	Keying Slot	0.25 in	0.09 in	0.1 in
Samtec Inc. ZSS-115-01-S-D-515	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.515 in	All	0.63 in	3 A	Keying Slot	0.25 in	0.115 in	0.1 in
Samtec Inc. ZSS-115-03-G-D-650	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Tin	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.65 in	All	0.83 in	3 A	Keying Slot	0.25 in	0.18 in	0.1 in
Samtec Inc. ZSS-115-05-L-D-927-LL	Shrouded - 4 Wall	Kinked Pin Solder	0.1 in	Through Hole	Male Pin	2	30	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.927 in	All	1.03 in	3 A	Keying Slot	0.25 in	0.103 in	0.1 in
Samtec Inc. ZSS-115-06-S-D-1020	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header								0.1 in
Samtec Inc. ZSS-115-04-T-D-680	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Tin	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Tin	Black	105 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.68 in	All	0.93 in	3 A	Keying Slot	0.25 in	0.25 in	0.1 in
Samtec Inc. ZSS-115-03-T-D-664	Shrouded - 4 Wall	Solder	0.1 in	Through Hole	Male Pin	2	30	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.664 in	All	0.83 in	3 A	Keying Slot	0.25 in	0.166 in	0.1 in
Samtec Inc. ZSS-115-01-L-D-504-LL	Shrouded - 4 Wall	Kinked Pin Solder	0.1 in	Through Hole	Male Pin	2	30	Tin	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.504 in	All	0.63 in	3 A	Keying Slot	0.25 in	0.126 in	0.1 in	10 µin
Samtec Inc. ZSS-115-01-G-S-450-LL	Shrouded - 4 Wall	Kinked Pin Solder	0.1 in	Through Hole	Male Pin	1	15	Gold	UL94 V-0	Square	Push-Pull	Board Board or Cable	Phosphor Bronze	Gold	Black	125 °C	-55 °C	Glass Filled Polyester	Elevated Header	0.45 in	All	0.63 in	3 A	Keying Slot	0.25 in	0.18 in		10 µin	3 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ZSS-115-02-S-D-640 | Datasheet
