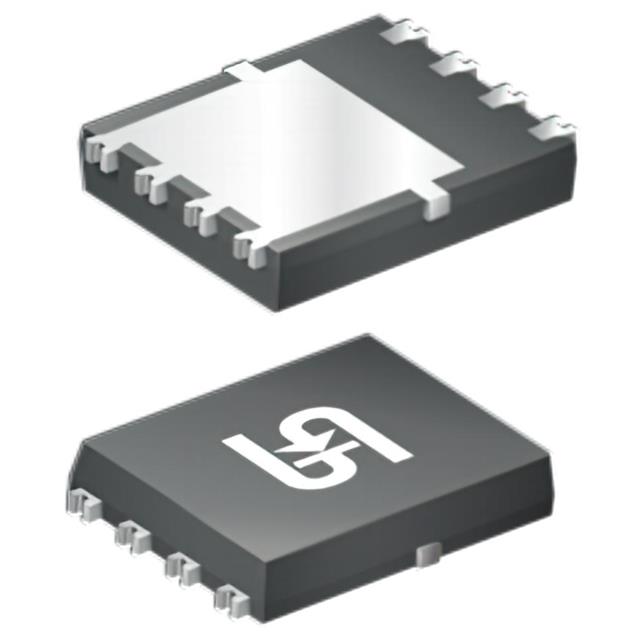

TQM043NH04CR RLG

Active

Taiwan Semiconductor Corporation

40V, 54A, SINGLE N-CHANNEL POWER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

40V, 54A, SINGLE N-CHANNEL POWER

Technical Specifications

Parameters and characteristics for this part

Specification	TQM043NH04CR RLG

null

Part	FET Type	Qualification	Power Dissipation (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id [Max]	Vgs (Max)	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Supplier Device Package	Technology	Grade
Taiwan Semiconductor Corporation TQM043NH04CR RLG
Taiwan Semiconductor Corporation TQM043NH04LCR RLG	N-Channel	AEC-Q101	100 W	-55 °C	175 ░C	4.3 mOhm	42 nC	2.2 V	16 V	Surface Mount	4.5 V 10 V	40 V	2480 pF	8-PowerTDFN	8-PDFN (5x6)	MOSFET (Metal Oxide)	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40V, 54A, SINGLE N-CHANNEL POWER
