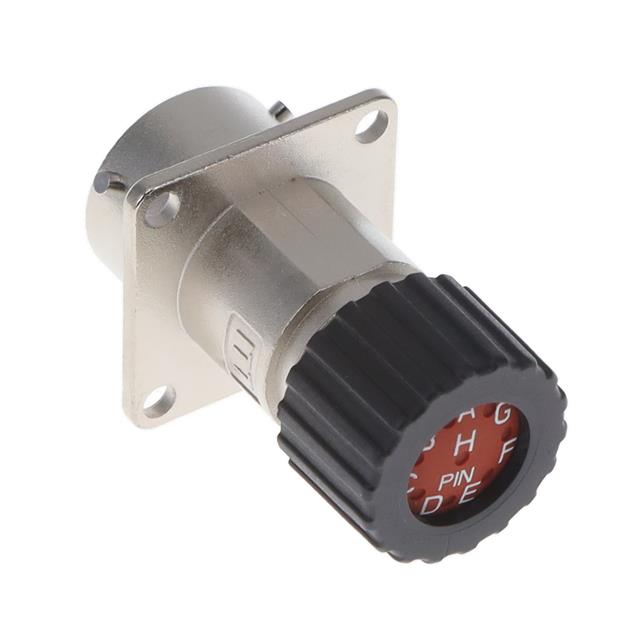

Specification	192993-0072

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp, Solder
Fastening Type	Detent Lock
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	8 mm
Shielding	Shielded
Type	For Male Pins

19299 Series

Part	Includes	Includes Total Count	Note	Contact Shape	Shielding	Material Flammability Rating	Mounting Feature	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Mounting Type	Connector Type	Insert Material	Contact Type	Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Housing Color	Features	Shell Finish	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Number of Positions	For Use With/Related Products	Accessory Type
ITT Cannon, LLC 192991-0617
ITT Cannon, LLC 192990-9460	Connector Grommet Nuts O-Ring	5 pcs	Contacts Not Included	Circular	Unshielded	UL94 V-0	Bulkhead Front Side Nut	4	24	20	-55 °C	105 °C	Nylon Polyamide (PA)	24	420	Panel Mount	Receptacle Housing	Nylon PA Polyamide	Crimp Solder Solder Cup	For Female Sockets	Dust Tight Waterproof	IP67	Detent Lock	Black
ITT Cannon, LLC 192993-0052			Contacts Not Included	Circular	Shielded	UL94 V-0					-55 °C	105 °C	Zinc Alloy			Free Hanging (In-Line)	Plug Housing	Nylon PA Polyamide	Crimp Solder Cup	For Female Sockets	Dust Tight Waterproof	IP67	Detent Lock	Silver	Coupling Nut	Nickel	Keyed	8 mm	12 mm	8
ITT Cannon, LLC 192993-0072			Contacts Not Included	Circular	Shielded	UL94 V-0	Flange				-55 °C	105 °C	Zinc Alloy			Panel Mount	Receptacle Housing	Nylon PA Polyamide	Crimp Solder Solder Cup	For Male Pins	Dust Tight Waterproof	IP67	Detent Lock	Silver		Nickel	Keyed	8 mm	12 mm	8
ITT Cannon, LLC 192990-0000																															Trident Neptune Connectors	Discrimination Key Signal Pin
ITT Cannon, LLC 192990-1710			Contacts Not Included	Circular	Unshielded	UL94 V-0	Flange				-55 °C	105 °C	Nylon Polyamide (PA)	18	23	Panel Mount	Receptacle Housing	Nylon PA Polyamide	Crimp Solder Solder Cup	For Female Sockets	Dust Tight Water Resistant	IP65	Detent Lock	Black			Keyed			23
ITT Cannon, LLC 192990-5410			Contacts Not Included	Circular	Unshielded	UL94 V-0					-55 °C	105 °C	Nylon Polyamide (PA)	16 S	19	Free Hanging (In-Line)	Plug Housing	Nylon PA Polyamide	Crimp Solder Cup	For Male Pins			Detent Lock	Black Silver	Cable Clamp Coupling Nut		Keyed			19
ITT Cannon, LLC 192993-0054			Contacts Not Included	Circular	Shielded	UL94 V-0					-55 °C	105 °C	Zinc Alloy	16 S	19	Free Hanging (In-Line)	Plug Housing	Nylon PA Polyamide	Crimp Solder Cup	For Female Sockets	Dust Tight Waterproof	IP67	Detent Lock	Silver	Coupling Nut	Nickel	Keyed			19
ITT Cannon, LLC 192991-0254
ITT Cannon, LLC 192990-1800
