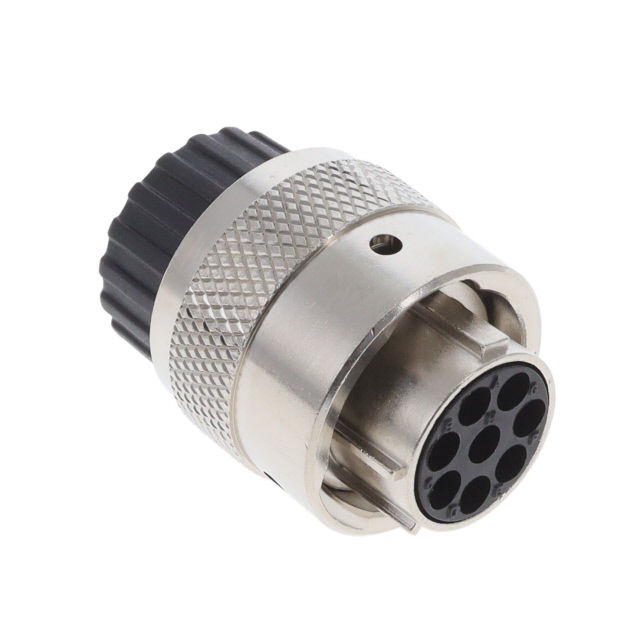

192993-0052

Active

ITT Cannon, LLC

CONN PLUG HSG FMALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

192993-0052

Active

ITT Cannon, LLC

CONN PLUG HSG FMALE 8POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192993-0052

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12-0008
Shielding	Shielded
Type	For Female Sockets

19299 Series

Part	Fastening Type	Shielding	Contact Type	Contact Shape	Number of Positions	Number of Positions [custom]	Type	Insert Material	Housing Color	Note	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Includes	Mounting Feature	Shell Size - Insert [custom]	Connector Type	Shell Size - Insert	Features	Orientation	Shell Material	Mounting Type	Shell Finish	Accessory Type	For Use With/Related Products	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]
ITT Cannon, LLC 192991-0617
ITT Cannon, LLC 192990-9460	Detent Lock	Unshielded	Crimp Solder Solder Cup	Circular	24	4	For Female Sockets	Nylon Polyamide (PA)	Black	Contacts Not Included	UL94 V-0	105 ░C	-55 °C	IP67 - Dust Tight Waterproof	1 Connector 1 Grommet 1 O-Ring 2 Nuts	Bulkhead - Front Side Nut	24-0420	Receptacle Housing
ITT Cannon, LLC 192993-0052	Detent Lock	Shielded	Crimp and Solder Cup	Circular	8		For Female Sockets	Nylon Polyamide (PA)	Silver	Contacts Not Included	UL94 V-0	105 ░C	-55 °C	IP67 - Dust Tight Waterproof				Plug Housing	12-0008	Coupling Nut	Keyed	Zinc Alloy	Free Hanging (In-Line)	Nickel
ITT Cannon, LLC 192993-0072	Detent Lock	Shielded	Crimp Solder Solder Cup	Circular	8		For Male Pins	Nylon Polyamide (PA)	Silver	Contacts Not Included	UL94 V-0	105 ░C	-55 °C	IP67 - Dust Tight Waterproof		Flange		Receptacle Housing	12-0008		Keyed	Zinc Alloy		Nickel
ITT Cannon, LLC 192990-0000																									Discrimination Key Signal Pin	Trident Neptune Connectors
ITT Cannon, LLC 192990-1710	Detent Lock	Unshielded	Crimp Solder Solder Cup	Circular	23		For Female Sockets	Nylon Polyamide (PA)	Black	Contacts Not Included	UL94 V-0	105 ░C	-55 °C	IP65 - Dust Tight Water Resistant		Flange		Receptacle Housing			Keyed						18	23
ITT Cannon, LLC 192990-5410	Detent Lock	Unshielded	Crimp and Solder Cup	Circular	19		For Male Pins	Nylon Polyamide (PA)	Black Silver	Contacts Not Included	UL94 V-0	105 ░C	-55 °C					Plug Housing		Cable Clamp Coupling Nut	Keyed		Free Hanging (In-Line)						16	19
ITT Cannon, LLC 192993-0054	Detent Lock	Shielded	Crimp and Solder Cup	Circular	19		For Female Sockets	Nylon Polyamide (PA)	Silver	Contacts Not Included	UL94 V-0	105 ░C	-55 °C	IP67 - Dust Tight Waterproof				Plug Housing	16-0019	Coupling Nut	Keyed	Zinc Alloy	Free Hanging (In-Line)	Nickel
ITT Cannon, LLC 192991-0254
ITT Cannon, LLC 192990-1290	Detent Lock	Unshielded	Crimp Solder Solder Cup	Circular	23		For Female Sockets	Nylon Polyamide (PA)	Black	Contacts Not Included	UL94 V-0	105 ░C	-55 °C			Flange		Receptacle Housing			Keyed						18	23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.03
		10	$ 21.04
		25	$ 20.13
		50	$ 19.48
		100	$ 18.83
		250	$ 17.79
		500	$ 17.27

Description

General part information

19299 Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
