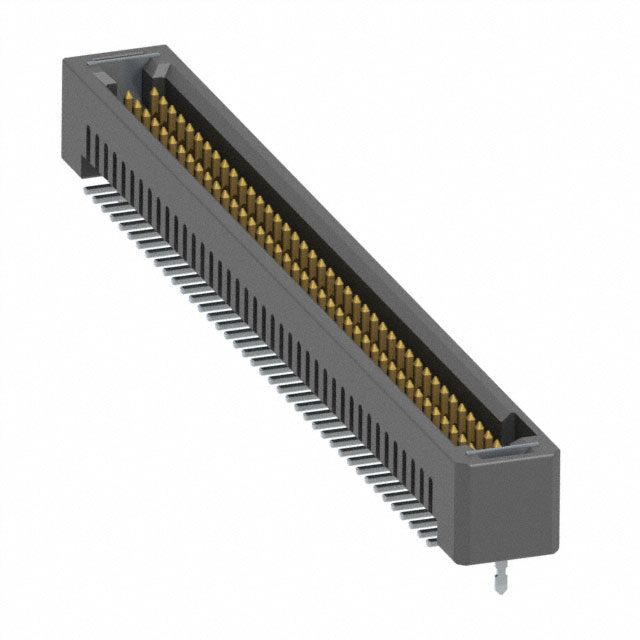

TFM-140-02-S-D-WT-TR

Active

Samtec Inc.

CONN HEADER SMD 80POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-140-02-S-D-WT-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-140 Series

...

Part	Material Flammability Rating	Number of Positions	Contact Material	Shrouding	Termination	Number of Rows	Voltage Rating	Style	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Features	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Material	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TFM-140-21-S-D-A	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Tin	9.14 mm	0.36 in	0.05 in	1.27 mm	3.2 A	Board Guide	Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Through Hole	0.05 in	1.27 mm	2.03 mm	0.08 in	Male Pin
Samtec Inc. TFM-140-12-H-D-P	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Gold	7.37 mm	0.29 in	0.05 in	1.27 mm	2.9 A	Pick and Place	Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin	3 µin	0.076 µm
Samtec Inc. TFM-140-32-S-D-A-P	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Tin	11.05 mm	0.435 in	0.05 in	1.27 mm	2.9 A	Board Guide Pick and Place	Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin
Samtec Inc. TFM-140-32-H-D	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Gold	11.05 mm	0.435 in	0.05 in	1.27 mm	2.9 A		Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin	3 µin	0.076 µm
Samtec Inc. TFM-140-01-STL-D-RA	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Tin	5.72 mm	0.225 in	0.05 in	1.27 mm	2.9 A		Push-Pull	All	0.142 in	3.61 mm	Gold	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.05 in	1.27 mm	1.91 mm		Male Pin			0.075 in
Samtec Inc. TFM-140-02-L-S-K	UL94 V-0	40	Phosphor Bronze	Shrouded - 4 Wall	Solder	1	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	15 µin	0.38 µm	Square	Header	Tin	5.6 mm	0.22 in			2.9 A	Pick and Place	Push-Pull	All	0.131 in	3.33 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin
Samtec Inc. TFM-140-01-L-D-LC	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	15 µin	0.38 µm	Square	Header	Tin	5.6 mm	0.22 in	0.05 in	1.27 mm	2.9 A		Push-Pull	All	0.131 in	3.33 mm	Gold	Liquid Crystal Polymer (LCP)	Through Hole	0.05 in	1.27 mm			Male Pin			0.078 in	1.98 mm
Samtec Inc. TFM-140-02-S-D-WT-TR	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	30 Áin	0.76 Ám	Square	Header	Tin	5.6 mm	0.22 in	0.05 in	1.27 mm	2.9 A	Solder Retention	Push-Pull	All	0.131 in	3.33 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin
Samtec Inc. TFM-140-22-L-D	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	15 µin	0.38 µm	Square	Header	Tin	9.14 mm	0.36 in	0.05 in	1.27 mm	2.9 A		Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin
Samtec Inc. TFM-140-32-L-D-A-P	UL94 V-0	80	Phosphor Bronze	Shrouded - 4 Wall	Solder	2	275 VAC	Board to Board Cable	Black	-55 °C	125 °C	15 µin	0.38 µm	Square	Header	Tin	11.05 mm	0.435 in	0.05 in	1.27 mm	2.9 A	Board Guide Pick and Place	Push-Pull	All	0.139 in	3.53 mm	Gold	Liquid Crystal Polymer (LCP)	Surface Mount	0.05 in	1.27 mm			Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 7.58

Description

General part information

TFM-140 Series

Connector Header Surface Mount 80 position 0.050" (1.27mm)
