TFM-140-01-L-D-LC - TFM-140-01-L-D-LC

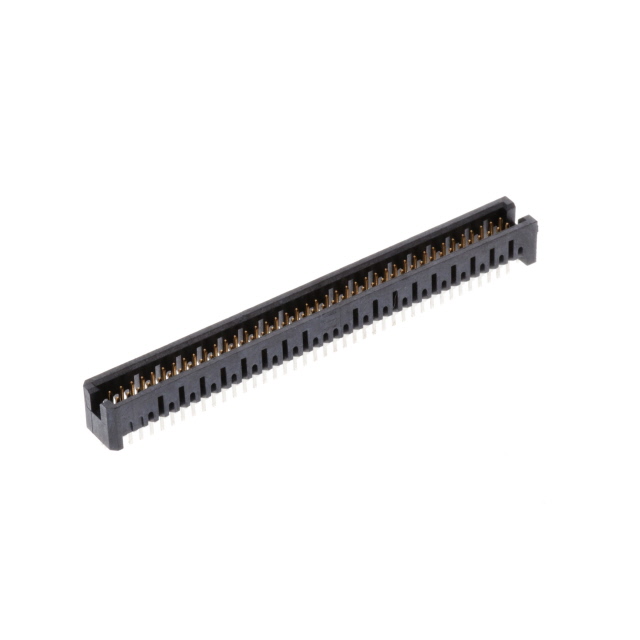

TFM-140-01-L-D-LC

Active
Samtec Inc.

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFM Series Other Related Documents 03Tiger Eye™ Cost-Effective Terminal Strip, .050" Pitch+2
TFM-140-01-L-D-LC - TFM-140-01-L-D-LC

TFM-140-01-L-D-LC

Active
Samtec Inc.

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

DocumentsSFM Series Other Related Documents 03Tiger Eye™ Cost-Effective Terminal Strip, .050" Pitch+2

Technical Specifications

Parameters and characteristics for this part

SpecificationTFM-140-01-L-D-LC
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating15 µin
Contact Finish Thickness - Mating0.38 µm
Contact Length - Mating3.33 mm
Contact Length - Mating0.131 in
Contact Length - Post [x]0.078 in
Contact Length - Post [x]1.98 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2.9 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height5.6 mm
Insulation Height0.22 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions80
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating275 VAC

TFM-140 Series

...
PartMaterial Flammability RatingNumber of PositionsContact MaterialShroudingTerminationNumber of RowsVoltage RatingStyleInsulation ColorOperating Temperature [Min]Operating Temperature [Max]Contact Finish Thickness - MatingContact Finish Thickness - MatingContact ShapeConnector TypeContact Finish - PostInsulation HeightInsulation HeightRow Spacing - MatingRow Spacing - MatingCurrent Rating (Amps)FeaturesFastening TypeNumber of Positions LoadedContact Length - MatingContact Length - MatingContact Finish - MatingInsulation MaterialMounting TypePitch - MatingPitch - MatingContact Length - PostContact Length - PostContact TypeContact Finish Thickness - PostContact Finish Thickness - PostContact Length - Post [x]Contact Length - Post [x]
Samtec Inc.
TFM-140-21-S-D-A
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Tin
9.14 mm
0.36 in
0.05 in
1.27 mm
3.2 A
Board Guide
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Through Hole
0.05 in
1.27 mm
2.03 mm
0.08 in
Male Pin
Samtec Inc.
TFM-140-12-H-D-P
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Gold
7.37 mm
0.29 in
0.05 in
1.27 mm
2.9 A
Pick and Place
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
3 µin
0.076 µm
Samtec Inc.
TFM-140-32-S-D-A-P
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Tin
11.05 mm
0.435 in
0.05 in
1.27 mm
2.9 A
Board Guide
Pick and Place
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
Samtec Inc.
TFM-140-32-H-D
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Gold
11.05 mm
0.435 in
0.05 in
1.27 mm
2.9 A
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
3 µin
0.076 µm
Samtec Inc.
TFM-140-01-STL-D-RA
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Tin
5.72 mm
0.225 in
0.05 in
1.27 mm
2.9 A
Push-Pull
All
0.142 in
3.61 mm
Gold
Liquid Crystal Polymer (LCP)
Through Hole
Right Angle
0.05 in
1.27 mm
1.91 mm
Male Pin
0.075 in
Samtec Inc.
TFM-140-02-L-S-K
UL94 V-0
40
Phosphor Bronze
Shrouded - 4 Wall
Solder
1
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
15 µin
0.38 µm
Square
Header
Tin
5.6 mm
0.22 in
2.9 A
Pick and Place
Push-Pull
All
0.131 in
3.33 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
Samtec Inc.
TFM-140-01-L-D-LC
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
15 µin
0.38 µm
Square
Header
Tin
5.6 mm
0.22 in
0.05 in
1.27 mm
2.9 A
Push-Pull
All
0.131 in
3.33 mm
Gold
Liquid Crystal Polymer (LCP)
Through Hole
0.05 in
1.27 mm
Male Pin
0.078 in
1.98 mm
Samtec Inc.
TFM-140-02-S-D-WT-TR
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
30 Áin
0.76 Ám
Square
Header
Tin
5.6 mm
0.22 in
0.05 in
1.27 mm
2.9 A
Solder Retention
Push-Pull
All
0.131 in
3.33 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
Samtec Inc.
TFM-140-22-L-D
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
15 µin
0.38 µm
Square
Header
Tin
9.14 mm
0.36 in
0.05 in
1.27 mm
2.9 A
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin
Samtec Inc.
TFM-140-32-L-D-A-P
UL94 V-0
80
Phosphor Bronze
Shrouded - 4 Wall
Solder
2
275 VAC
Board to Board
Cable
Black
-55 °C
125 °C
15 µin
0.38 µm
Square
Header
Tin
11.05 mm
0.435 in
0.05 in
1.27 mm
2.9 A
Board Guide
Pick and Place
Push-Pull
All
0.139 in
3.53 mm
Gold
Liquid Crystal Polymer (LCP)
Surface Mount
0.05 in
1.27 mm
Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 8.14
10$ 7.64
25$ 7.12
50$ 6.65
100$ 6.07
500$ 5.90

Description

General part information

TFM-140 Series

Connector Header Through Hole 80 position 0.050" (1.27mm)
