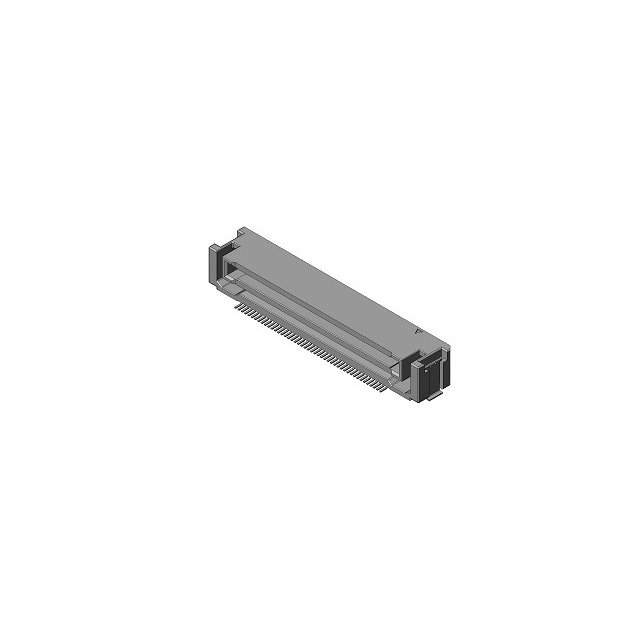

MA01R090HAYBR600

Active

JAE Electronics

CONN RIGID SIDE R/A 90 POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MA01R090HAYBR600

Active

JAE Electronics

CONN RIGID SIDE R/A 90 POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA01R090HAYBR600

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	6.6 mm
Height Above Board	0.26 "
Mounting Type	Surface Mount, Right Angle
Number of Positions	90
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

MA01R Series

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Connector Type	Contact Finish	Features	Mated Stacking Heights
JAE Electronics MA01R090HAYBR600	90	4 Áin	0.1 Ám	0.64 mm	0.025 in	6.6 mm	0.26 "	Surface Mount Right Angle	2	Receptacle Outer Shroud Contacts	Gold	Board Guide
JAE Electronics MA01R080VABBR600	80	4 Áin	0.1 Ám	0.64 mm	0.025 in	6.6 mm	0.26 "	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide	14 mm
JAE Electronics MA01R060VADBR500	60	4 Áin	0.1 Ám	0.64 mm	0.025 in	8.6 mm	0.339 in	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide Solder Retention	10 mm 16 mm 22 mm
JAE Electronics MA01R100HAYBR600	100	4 Áin	0.1 Ám	0.64 mm	0.025 in	6.6 mm	0.26 "	Surface Mount Right Angle	2	Receptacle Outer Shroud Contacts	Gold	Board Guide
JAE Electronics MA01R080HAYBR600	80	4 Áin	0.1 Ám	0.64 mm	0.025 in	6.6 mm	0.26 "	Surface Mount Right Angle	2	Receptacle Outer Shroud Contacts	Gold	Board Guide
JAE Electronics MA01R100VADBR500	100	4 Áin	0.1 Ám	0.64 mm	0.025 in	8.6 mm	0.339 in	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide Solder Retention	10 mm 16 mm 22 mm
JAE Electronics MA01R120VANBR200	120	4 Áin	0.1 Ám	0.64 mm	0.025 in	16.6 mm	0.654 in	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide Solder Retention	18 mm 24 mm 30 mm
JAE Electronics MA01R040VANBR200	40	4 Áin	0.1 Ám	0.64 mm	0.025 in	16.6 mm	0.654 in	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide Solder Retention	18 mm 24 mm 30 mm
JAE Electronics MA01R100VABBR600	100	4 Áin	0.1 Ám	0.64 mm	0.025 in	6.6 mm	0.26 "	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide	14 mm
JAE Electronics MA01R080VANBR200	80	4 Áin	0.1 Ám	0.64 mm	0.025 in	16.6 mm	0.654 in	Surface Mount	2	Receptacle Outer Shroud Contacts	Gold	Board Guide Solder Retention	18 mm 24 mm 30 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.08
		10	$ 8.17
		25	$ 7.70
		50	$ 7.50
		100	$ 7.30
		250	$ 6.51
	Digi-Reel®	1	$ 9.08
		10	$ 8.17
		25	$ 7.70
		50	$ 7.50
		100	$ 7.30
		250	$ 6.51
	Tape & Reel (TR)	600	$ 6.12
		1200	$ 5.41
		1800	$ 5.25

Description

General part information

MA01R Series

90 Position Connector Receptacle, Outer Shroud Contacts Surface Mount, Right Angle Gold
