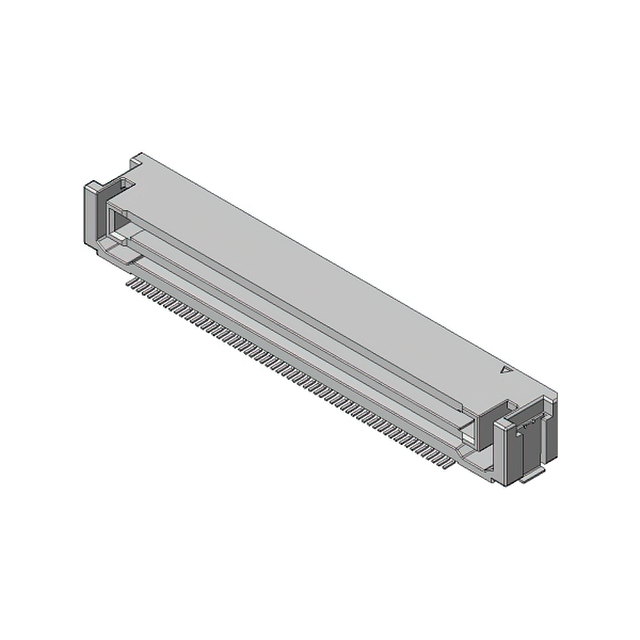

MA01R120HAYBR600
ActiveJAE Electronics
CONN RIGID SIDE R/A 120 POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA01R120HAYBR600
ActiveJAE Electronics
CONN RIGID SIDE R/A 120 POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA01R120HAYBR600 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 6.6 mm |
| Height Above Board | 0.26 " |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.60 | |
| 10 | $ 8.64 | |||
| 25 | $ 8.14 | |||
| 50 | $ 7.93 | |||
| 100 | $ 7.73 | |||
| 250 | $ 6.89 | |||
| Digi-Reel® | 1 | $ 9.60 | ||
| 10 | $ 8.64 | |||
| 25 | $ 8.14 | |||
| 50 | $ 7.93 | |||
| 100 | $ 7.73 | |||
| 250 | $ 6.89 | |||
| Tape & Reel (TR) | 600 | $ 6.47 | ||
| 1200 | $ 5.72 | |||
| 1800 | $ 5.55 | |||
Description
General part information
MA01R120HAYBR600
120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount, Right Angle Gold
