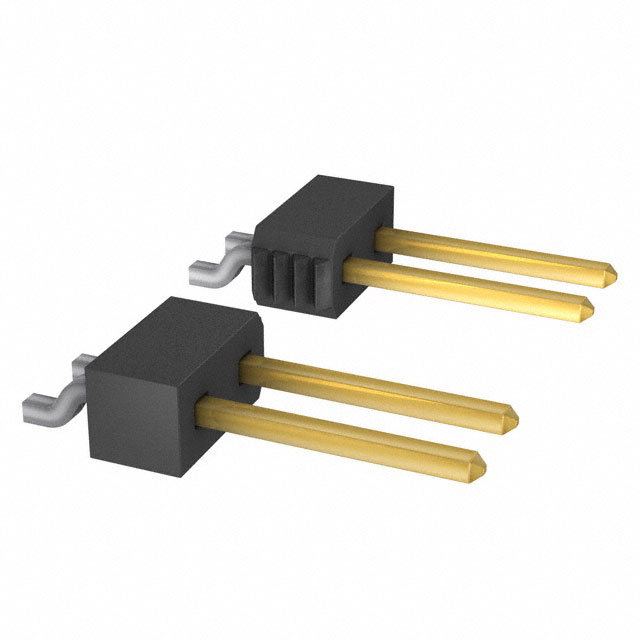

TSM-110-02-T-SH-P

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

TSM-110-02-T-SH-P

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-110-02-T-SH-P

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-110 Series

...

Part	Contact Shape	Contact Material	Termination	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Style	Shrouding	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Insulation Material	Connector Type	Material Flammability Rating	Mounting Type	Features	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-110-03-S-SV-LC	Square	Phosphor Bronze	Solder	1	Tin	30 Áin	0.76 Ám	Male Pin	0.42 in	10.67 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	10	Gold	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount
Samtec Inc. TSM-110-02-S-SV-A	Square	Phosphor Bronze	Solder	1	Tin	30 Áin	0.76 Ám	Male Pin	0.32 in	8.13 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	10	Gold	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount	Board Guide
Samtec Inc. TSM-110-04-L-SV-A	Square	Phosphor Bronze	Solder	1	Tin	10 çin	0.25 çm	Male Pin	0.12 in	3.05 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	10	Gold	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount	Board Guide
Samtec Inc. TSM-110-01-LM-SH-A-P	Square	Phosphor Bronze	Solder	1	Tin	10 çin	0.25 çm	Male Pin		5.84 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.12 in	3.05 mm	10	Gold	Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Surface Mount Right Angle	Board Guide Pick and Place	0.23 in
Samtec Inc. TSM-110-04-L-DH-A	Square	Phosphor Bronze	Solder	2	Tin	10 çin	0.25 çm	Male Pin	0.12 in	3.05 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.24 in	6.1 mm	20	Gold	Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Surface Mount Right Angle	Board Guide		2.54 mm	0.1 in
Samtec Inc. TSM-110-01-F-DH-TR	Square	Phosphor Bronze	Solder	2	Tin	3 µin	0.076 µm	Male Pin		5.84 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.24 in	6.1 mm	20	Gold	Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Surface Mount Right Angle		0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-110-01-T-DV	Square	Phosphor Bronze	Solder	2	Tin			Male Pin		5.84 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	105 ░C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	20		Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount		0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-110-05-T-DV	Square	Phosphor Bronze	Solder	2	Tin			Male Pin			All	Board to Board Cable	Unshrouded	Black	-55 °C	105 ░C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	20		Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount		0.075 in	2.54 mm	0.1 in	1.9 mm
Samtec Inc. TSM-110-04-G-DV-A	Square	Phosphor Bronze	Solder	2	Gold	10 çin	0.25 çm	Male Pin	0.12 in	3.05 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	125 °C	0.1 in	2.54 mm	Push-Pull	0.1 in	2.54 mm	20	Gold	Liquid Crystal Polymer (LCP)	Cuttable Header	UL94 V-0	Surface Mount	Board Guide		2.54 mm	0.1 in		3 µin	0.076 µm
Samtec Inc. TSM-110-02-T-SH-P	Square	Phosphor Bronze	Solder	1	Tin			Male Pin	0.32 in	8.13 mm	All	Board to Board Cable	Unshrouded	Black	-55 °C	105 ░C	0.1 in	2.54 mm	Push-Pull	0.12 in	3.05 mm	10		Liquid Crystal Polymer (LCP)	Header	UL94 V-0	Surface Mount Right Angle	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.72

Description

General part information

TSM-110 Series

Connector Header Surface Mount, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
