663-009-364-050

Active

EDAC Inc.

663 SERIES RIGHT ANGLE DUAL D-SU

663-009-364-050

Active

EDAC Inc.

663 SERIES RIGHT ANGLE DUAL D-SU

Description Specifications Series Pricing CAD Documents

Description

General part information

663-009 Series

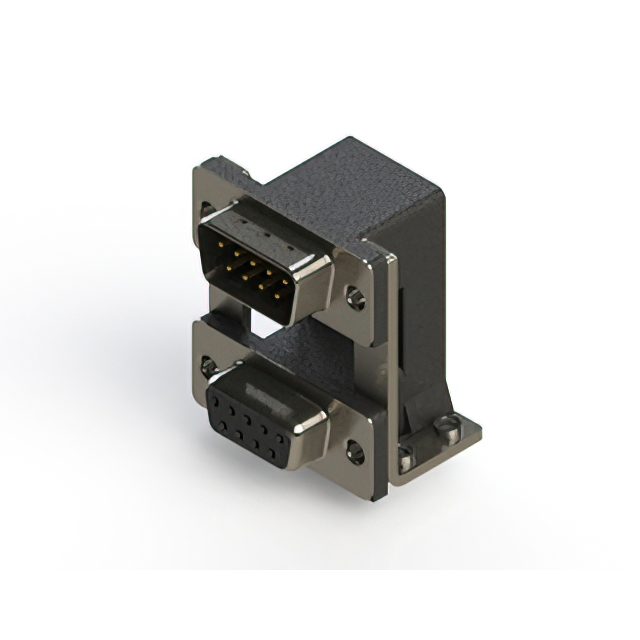

9, 9 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	663-009-364-050

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Male Pins, Female Sockets, Receptacle, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

663-009 Series

...

Part	Backset Spacing	Contact Finish	Termination	Connector Style	Material Flammability Rating	Contact Finish Thickness	Features	Flange Feature	Number of Rows	Contact Type	Mounting Type	Current Rating (Per Contact)	Shell Material	Finish	Connector Type	Number of Positions	Number of Positions	Shell Size, Connector Layout	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Color	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 663-009-664-056	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	30 µin	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze
EDAC Inc. 663-009-264-001	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	0	Grounding Indents Shielded	Housing Shell (M3)	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze	Flash	Flash
EDAC Inc. 663-009-364-050	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	15 µin	Grounding Indents Shielded	Housing Shell (Unthreaded)	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze
EDAC Inc. 663-009-664-009	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	30 µin	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze
EDAC Inc. 663-009-364-006	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	15 µin	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze
EDAC Inc. 663-009-264-053	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	0	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze	Flash	Flash
EDAC Inc. 663-009-364-008	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	15 µin	Grounding Indents Shielded	Housing Shell (4-40)	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze
EDAC Inc. 663-009-264-033	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	0	Grounding Indents Shielded	Female Screwlock (4-40) Mating Side	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze	Flash	Flash
EDAC Inc. 663-009-264-030	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	0	Grounding Indents Shielded	Housing Shell (Unthreaded)	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze	Flash	Flash
EDAC Inc. 663-009-264-007	0.318 in	Gold	Solder	D-Sub - Stacked	UL94 V-0	0	Grounding Indents Shielded	Housing Shell (Unthreaded)	2	Signal	Right Angle Through Hole	3 A	Steel	Nickel Plated	Female Sockets Male Pins Plug Receptacle	9	9	1 (DE E)	-55 °C	85 °C	Polyester Thermoplastic	Black	Brass Phosphor Bronze	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

663-009-364-050 | Datasheet
