663-009-364-008

Active

EDAC Inc.

663 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

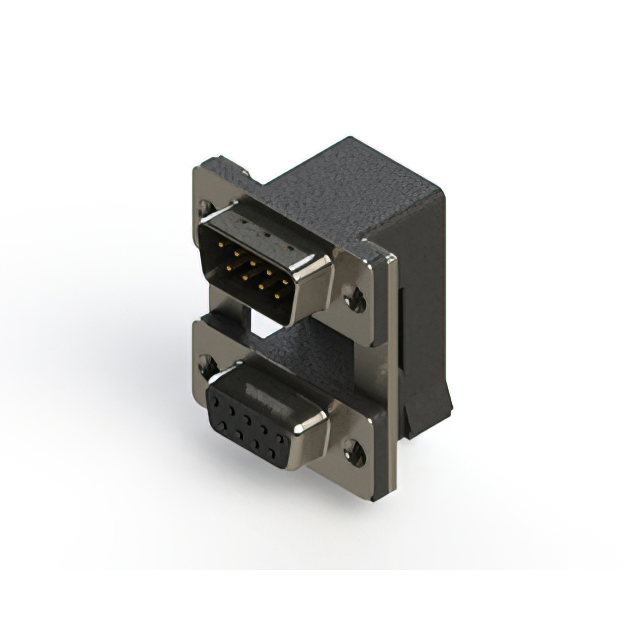

663-009-364-008

Active

EDAC Inc.

663 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	663-009-364-008

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass, Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

663-009 Series

Part	Current Rating (Amps)	Number of Positions	Mounting Type	Termination	Flange Feature	Dielectric Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Shell Size, Connector Layout	Material Flammability Rating	Number of Rows	Features	Backset Spacing	Backset Spacing	Contact Type	Contact Finish Thickness	Connector Style	Shell Material, Finish	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 663-009-264-001	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (M3)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black
EDAC Inc. 663-009-364-050	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal		D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black	15 µin	0.38 µm
EDAC Inc. 663-009-664-009	3 A	9	Through Hole Right Angle	Solder	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal		D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black	30 Áin	0.76 Ám
EDAC Inc. 663-009-364-006	3 A	9	Through Hole Right Angle	Solder	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal		D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black	15 µin	0.38 µm
EDAC Inc. 663-009-264-053	3 A	9	Through Hole Right Angle	Solder	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black
EDAC Inc. 663-009-364-008	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (4-40)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal		D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black	15 µin	0.38 µm
EDAC Inc. 663-009-264-033	3 A	9	Through Hole Right Angle	Solder	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black
EDAC Inc. 663-009-264-030	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black
EDAC Inc. 663-009-264-007	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Grounding Indents Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black
EDAC Inc. 663-009-264-04A	3 A	9	Through Hole Right Angle	Solder	Housing/Shell (M3)	Polyester Thermoplastic	Plug Male Pins Receptacle Female Sockets	85 °C	-55 °C	Gold	1 (DE E)	UL94 V-0	2	Board Lock Grounding Indents Mounting Brackets Shielded	8.08 mm	0.318 "	Signal	Flash	D-Sub - Stacked	Nickel Plated Steel	Brass Phosphor Bronze	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.08

Description

General part information

663-009 Series

9, 9 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
