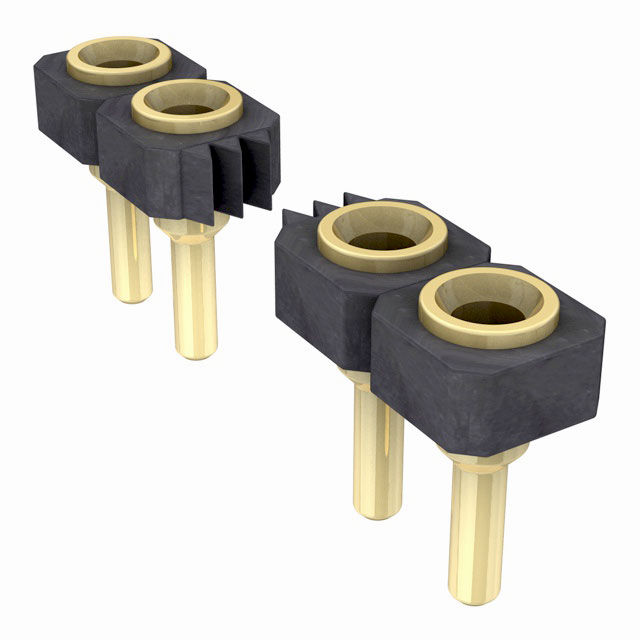

SL-128-G-12

Active

Samtec Inc.

CONN RCPT 28POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SL-128-G-12

Active

Samtec Inc.

CONN RCPT 28POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SL-128-G-12

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	2.41 mm
Contact Length - Post [x]	0.095 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SL-114 Series

Headers & Wire Housings .100" Low Profile Single Row Screw Machine Socket Strip

...

Part	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Finish - Mating	Contact Shape	Termination	Insulation Material	Number of Positions	Contact Material	Fastening Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SL-114-T-10	0.1 in	2.54 mm	1	3.1 mm	0.122 in	Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)	14	Beryllium Copper	Push-Pull	Receptacle	0.108 in	2.75 mm	30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C
Samtec Inc. SL-110-TT-10	0.1 in	2.54 mm	1	3.1 mm	0.122 in	Through Hole	Black		Circular	Solder	Liquid Crystal Polymer (LCP)	10	Beryllium Copper	Push-Pull	Receptacle	0.108 in	2.75 mm			Female Socket	All	-55 °C	105 ░C	Tin
Samtec Inc. SL-113-G-19	0.1 in	2.54 mm	1	1.27 mm	0.05 in	Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)	13	Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C	Gold	10 çin	0.25 çm	2.08 mm	0.082 "
Samtec Inc. SL-111-T-32	0.1 in	2.54 mm	1	1.27 mm	0.05 in	Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)	11	Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C
Samtec Inc. SL-119-TT-11	0.1 in	2.54 mm	1	3.35 mm	0.132 in	Through Hole	Black		Circular	Solder	Liquid Crystal Polymer (LCP)	19	Beryllium Copper	Push-Pull	Receptacle	0.108 in	2.75 mm			Female Socket	All	-55 °C	105 ░C	Tin
Samtec Inc. SL-120-TT-10	0.1 in	2.54 mm	1	3.1 mm	0.122 in	Through Hole	Black		Circular	Solder	Liquid Crystal Polymer (LCP)	20	Beryllium Copper	Push-Pull	Receptacle	0.108 in	2.75 mm			Female Socket	All	-55 °C	105 ░C	Tin
Samtec Inc. SL-132-G-39	0.1 in	2.54 mm	1	1.27 mm	0.05 in	Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)		Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C	Gold	10 çin	0.25 çm
Samtec Inc. SL-116-G-31	0.1 in	2.54 mm	1	1.27 mm	0.05 in	Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)		Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C	Gold	10 çin	0.25 çm			16
Samtec Inc. SL-128-G-12	0.1 in	2.54 mm	1			Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)	28	Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C	Gold	10 çin	0.25 çm	2.41 mm	0.095 in		0.095 in	2.41 mm
Samtec Inc. SL-113-T-12	0.1 in	2.54 mm	1			Through Hole	Black	Gold	Circular	Solder	Liquid Crystal Polymer (LCP)	13	Beryllium Copper	Push-Pull	Receptacle			30 Áin	0.76 Ám	Female Socket	All	-55 °C	125 °C				2.41 mm	0.095 in		0.095 in	2.41 mm
