306-023-421-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

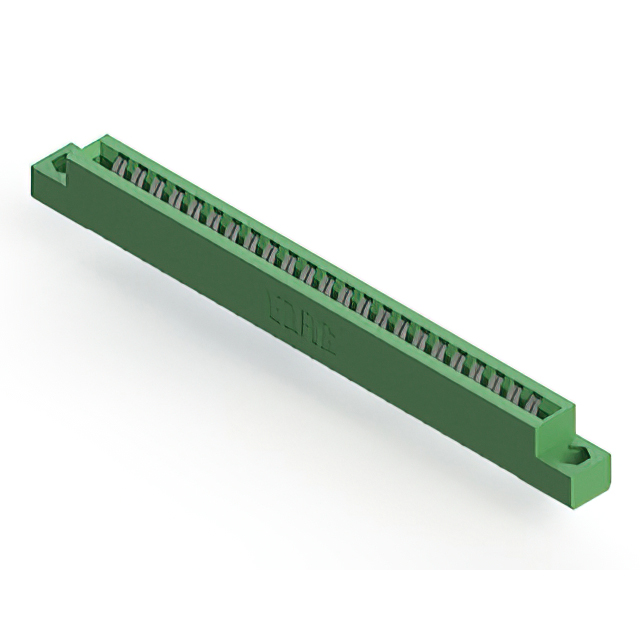

306-023-421-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 46POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-023-421-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	46
Number of Positions/Bay/Row [custom]	23
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-023 Series

Part	Contact Material	Contact Finish	Material - Insulation	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Color	Termination	Read Out	Pitch [x]	Pitch [x]	Features	Mounting Type	Gender	Card Type	Contact Type	Flange Feature	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 306-023-421-178	Copper Alloy	Tin	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm	Card Guides	Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	-40 °C	105 ░C	46
EDAC Inc. 306-023-421-104	Copper Alloy	Tin	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	Flush Mount Top Opening Unthreaded	2	-40 °C	105 ░C	46	3.96 mm	0.156 in
EDAC Inc. 306-023-521-107	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	Flush Mount M3 Threaded Insert Top Opening	2	-40 °C	105 ░C	46			10 Áin	0.25 Ám
EDAC Inc. 306-023-521-112	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	Flush Mount Side Opening Unthreaded	2	-40 °C	105 ░C	46	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 306-023-420-112	Copper Alloy	Tin	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	Flush Mount Side Opening Unthreaded	2	-40 °C	105 ░C	46	3.25 mm	0.128 "
EDAC Inc. 306-023-521-168	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm	Card Guides	Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	-40 °C	105 ░C	46			10 Áin	0.25 Ám
EDAC Inc. 306-023-500-112	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder Eyelet(s)	Dual	0.156 in	3.96 mm			Female	Non Specified - Dual Edge	Cantilever	Flush Mount Side Opening Unthreaded	2	-40 °C	105 ░C	46	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 306-023-520-108	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	-40 °C	105 ░C	46			10 Áin	0.25 Ám
EDAC Inc. 306-023-420-158	Copper Alloy	Tin	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm	Card Guides	Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	-40 °C	105 ░C	46
EDAC Inc. 306-023-521-108	Copper Alloy	Gold	Polyester Thermoplastic	23	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Green	Solder	Dual	0.156 in	3.96 mm		Panel Mount Through Hole	Female	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	2	-40 °C	105 ░C	46			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 14.50

Description

General part information

306-023 Series

46 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
