629-36W4650-2N2

Active

EDAC Inc.

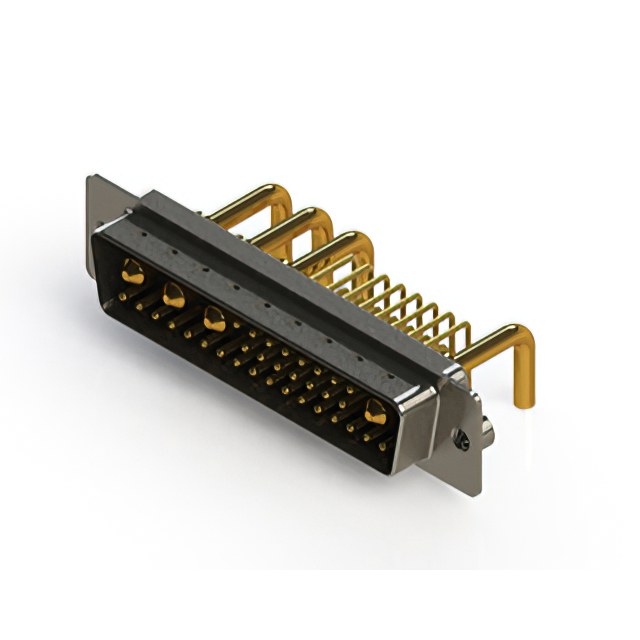

CONN D-SUB PLUG 36POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-36W4650-2N2

Active

EDAC Inc.

CONN D-SUB PLUG 36POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-36W4650-2N2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D), 36W4
Termination	Solder
Voltage Rating	125 VDC

629-36W Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size, Connector Layout	Color	Number of Rows	Current Rating (Amps)	Mounting Type	Features	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Finish	Dielectric Material	Contact Type	Termination	Voltage Rating	Flange Feature	Connector Style	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 629-36W4650-4N5	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 40 A	Through Hole Right Angle	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	4-40	Combo D-Sub	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug
EDAC Inc. 629-36W4650-2N2	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 20 A	Through Hole Right Angle		UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	Housing/Shell (4-40)	Combo D-Sub	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug
EDAC Inc. 629-36W4240-7NE	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2		Through Hole Right Angle	Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Coax Signal	Solder	125 VDC	M3	Combo D-Sub	Nickel Plated Steel			Male Pins Plug	Flash	4	32
EDAC Inc. 629-36W4640-2TD	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 20 A	Through Hole Right Angle	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	M3	Combo D-Sub		0.76 Ám	30 Áin	Male Pins Plug
EDAC Inc. 629-36W4640-4N2	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 40 A	Through Hole Right Angle		UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	Housing/Shell (4-40)	Combo D-Sub	Nickel Plated Steel	0.76 Ám	30 Áin	Male Pins Plug
EDAC Inc. 629-36W4240-1TC	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2		Through Hole Right Angle	Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	Housing/Shell (M3)	Combo D-Sub				Male Pins Plug	Flash			10A 5A
EDAC Inc. 629-36W4250-1T6	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2		Through Hole Right Angle	Board Lock Grounding Indents	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	4-40	Combo D-Sub				Male Pins Plug	Flash			10A 5A
EDAC Inc. 629-36W4650-3TA	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 30 A	Through Hole Right Angle	Grounding Indents	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	Board Side (M3)	Combo D-Sub		0.76 Ám	30 Áin	Male Pins Plug
EDAC Inc. 629-36W4240-5ND	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2		Through Hole Right Angle	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Coax Signal	Solder	125 VDC	M3	Combo D-Sub	Nickel Plated Steel			Male Pins Plug	Flash	4	32
EDAC Inc. 629-36W4240-4TC	-55 °C	125 °C	Copper Alloy	36W4 5 (DD D)	Black	2	5 A 40 A	Through Hole Right Angle	Grounding Indents Mounting Brackets	UL94 V-0	9.4 mm	0.37 in	Gold	Polyester Thermoplastic	Signal and Power	Solder	125 VDC	Housing/Shell (M3)	Combo D-Sub				Male Pins Plug	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 34.95

Description

General part information

629-36W Series

36 (32 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
