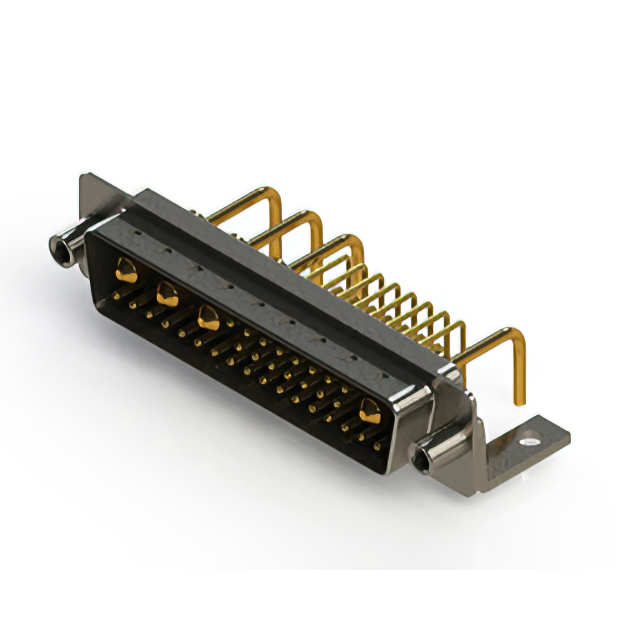

629-36W4250-1T6
ActiveEDAC Inc.
CONN D-SUB PLUG 36POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629-36W4250-1T6
ActiveEDAC Inc.
CONN D-SUB PLUG 36POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-36W4250-1T6 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Board Lock |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 5 (DD, D), 36W4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-36W Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Size, Connector Layout | Color | Number of Rows | Current Rating (Amps) | Mounting Type | Features | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish | Dielectric Material | Contact Type | Termination | Voltage Rating | Flange Feature | Connector Style | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 40 A | Through Hole Right Angle | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | 4-40 | Combo D-Sub | Nickel Plated Steel | 0.76 Ám | 30 Áin | Male Pins Plug | ||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 20 A | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | Housing/Shell (4-40) | Combo D-Sub | Nickel Plated Steel | 0.76 Ám | 30 Áin | Male Pins Plug | |||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | Through Hole Right Angle | Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Coax Signal | Solder | 125 VDC | M3 | Combo D-Sub | Nickel Plated Steel | Male Pins Plug | Flash | 4 | 32 | ||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 20 A | Through Hole Right Angle | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | M3 | Combo D-Sub | 0.76 Ám | 30 Áin | Male Pins Plug | |||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 40 A | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | Housing/Shell (4-40) | Combo D-Sub | Nickel Plated Steel | 0.76 Ám | 30 Áin | Male Pins Plug | |||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | Through Hole Right Angle | Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | Housing/Shell (M3) | Combo D-Sub | Male Pins Plug | Flash | 10A 5A | ||||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | Through Hole Right Angle | Board Lock Grounding Indents | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | 4-40 | Combo D-Sub | Male Pins Plug | Flash | 10A 5A | ||||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 30 A | Through Hole Right Angle | Grounding Indents | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | Board Side (M3) | Combo D-Sub | 0.76 Ám | 30 Áin | Male Pins Plug | |||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | Through Hole Right Angle | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Coax Signal | Solder | 125 VDC | M3 | Combo D-Sub | Nickel Plated Steel | Male Pins Plug | Flash | 4 | 32 | ||||
EDAC Inc. | -55 °C | 125 °C | Copper Alloy | 36W4 5 (DD D) | Black | 2 | 5 A 40 A | Through Hole Right Angle | Grounding Indents Mounting Brackets | UL94 V-0 | 9.4 mm | 0.37 in | Gold | Polyester Thermoplastic | Signal and Power | Solder | 125 VDC | Housing/Shell (M3) | Combo D-Sub | Male Pins Plug | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2000 | $ 11.19 | |
Description
General part information
629-36W Series
36 (32 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
