3ETH9-08.0

Active

MEC Switches

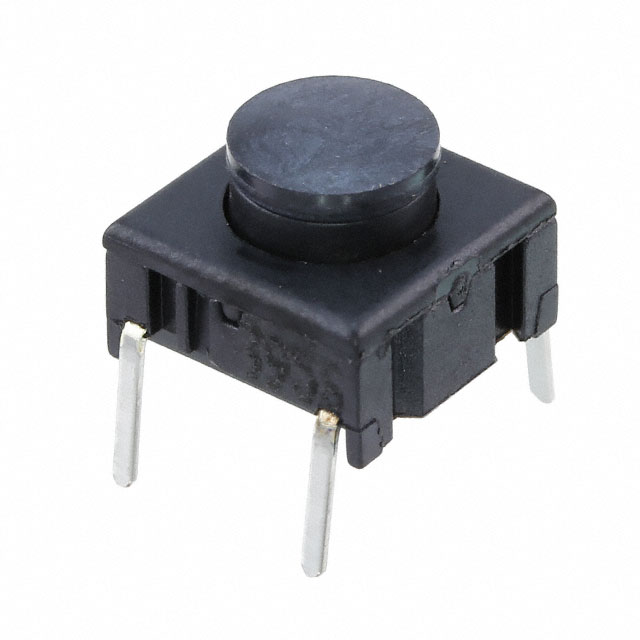

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC Catalog Datasheet

3ETH9-08.0

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsMEC Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.79
		10	$ 2.68
		25	$ 2.45
		100	$ 2.12
		300	$ 2.05

Description

General part information

3ETH9 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

MEC Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3ETH9-08.0	3ETH9 Series

Actuator Height off PCB, Vertical	-	9.5 - 15 mm
Actuator Height off PCB, Vertical [z]	8 mm	8 - 12 mm
Actuator Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	160 °C	160 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	PC Pin

3ETH9 Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Features	Switch Travel	Circuit	Mounting Type	Ingress Protection	Mechanical Life	Switch Function	Illumination	Operating Force	Contact Rating @ Voltage	Termination Style	Actuator Orientation	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical
MEC Switches 3ETH9-12.0	10.1 mm	10.1 mm	12 mm	Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C
MEC Switches 3ETH9-10.4	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	10.4 mm
MEC Switches 3ETH9-08.0	10.1 mm	10.1 mm	8 mm	Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C
MEC Switches 3ETH9-15.0	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	15 mm
MEC Switches 3ETH9-09.5	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	9.5 mm
