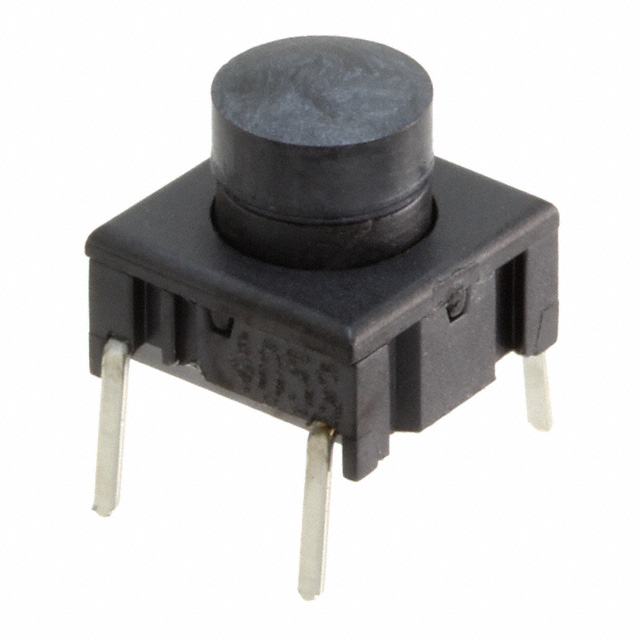

3ETH9-09.5

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet MEC Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3ETH9-09.5	3ETH9 Series

Actuator Height off PCB, Vertical	9.5 mm	9.5 - 15 mm
Actuator Height off PCB, Vertical	-	8 - 12 mm
Actuator Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	160 °C	160 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	PC Pin

3ETH9 Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Features	Switch Travel	Circuit	Mounting Type	Ingress Protection	Mechanical Life	Switch Function	Illumination	Operating Force	Contact Rating @ Voltage	Termination Style	Actuator Orientation	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical
MEC Switches 3ETH9-12.0	10.1 mm	10.1 mm	12 mm	Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C
MEC Switches 3ETH9-10.4	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	10.4 mm
MEC Switches 3ETH9-08.0	10.1 mm	10.1 mm	8 mm	Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C
MEC Switches 3ETH9-15.0	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	15 mm
MEC Switches 3ETH9-09.5	10.1 mm	10.1 mm		Sealed - Flux Protection	1 mm	SPST-NO	Through Hole	IP67 - Dust Tight, Waterproof	10000000 Cycles	Off-Mom	Non-Illuminated	300 gf	0.05 A, 24 VDC	PC Pin	Top Actuated	Standard	Polybutylene Terephthalate (PBT)	-40 °C	160 °C	9.5 mm
