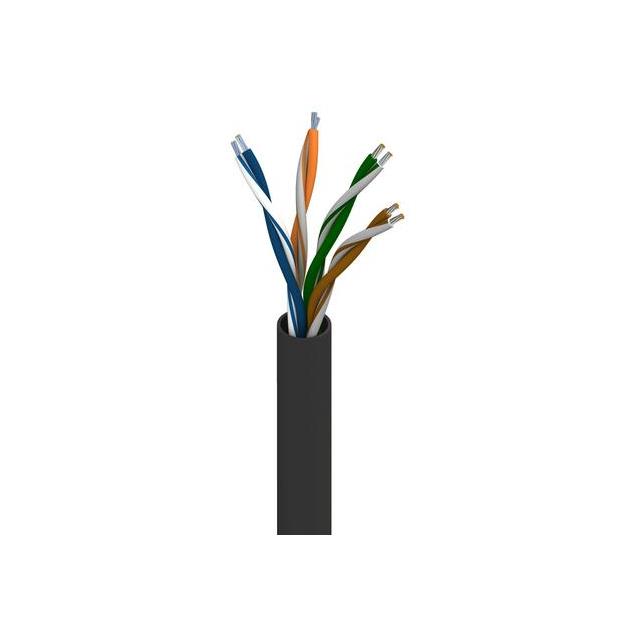

7924A 0105000

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7924A 0105000

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7924A 0105000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

7924A Series

Part	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Conductor Material	Wire Gauge	Voltage	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Features	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color	Length	Length	Length [x]	Length [x]
Belden Inc. 7924A 0105000	8	-40 °C	75 ░C	Industrial Network	Copper Tinned	24 AWG	300 V	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	UL Style CMR	Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5e	Black
Belden Inc. 7924A 1NH1000	8	-40 °C	75 ░C	Industrial Network	Copper Tinned	24 AWG	300 V	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	UL Style CMR	Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5e	Teal	1000 ft	304.8 m
Belden Inc. 7924A 0102000	8	-40 °C	75 ░C	Industrial Network	Copper Tinned	24 AWG	300 V	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	UL Style CMR	Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5e	Black			609.6 m	2000 ft
Belden Inc. 7924A 0021000	8	-40 °C	75 ░C	Industrial Network	Copper Tinned	24 AWG	300 V	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	UL Style CMR	Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5e	Red	1000 ft	304.8 m
Belden Inc. 7924A 0061000	8	-40 °C	75 ░C	Industrial Network	Copper Tinned	24 AWG	300 V	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in	UL Style CMR	Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5e	Blue	1000 ft	304.8 m
Belden Inc. 7924A 0101000	8	-40 °C	75 ░C	Network	Copper Tinned	24 AWG		Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	0.762 mm	0.03 in		Oil Resistant UV Resistant	32 AWG	7	Multi-Pair Cat5	Black	1000 ft	304.8 m	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.73

Description

General part information

7924A Series

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 5000' (1524.0m)
