Technical Specifications
Parameters and characteristics for this part
| Specification | 7924A 0101000 |
|---|---|
| Cable Type | Multi-Pair, Cat5 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Oil Resistant, UV Resistant |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Usage | Network |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 364.81 | |
| 5 | $ 298.48 | |||
| 10 | $ 232.15 | |||
| 25 | $ 198.99 | |||
| 50 | $ 185.72 | |||
| Spool | 1000 | $ 1.83 | ||
| 2000 | $ 1.73 | |||
| 3000 | $ 1.68 | |||
| 5000 | $ 1.62 | |||
Description
General part information
7924A Series

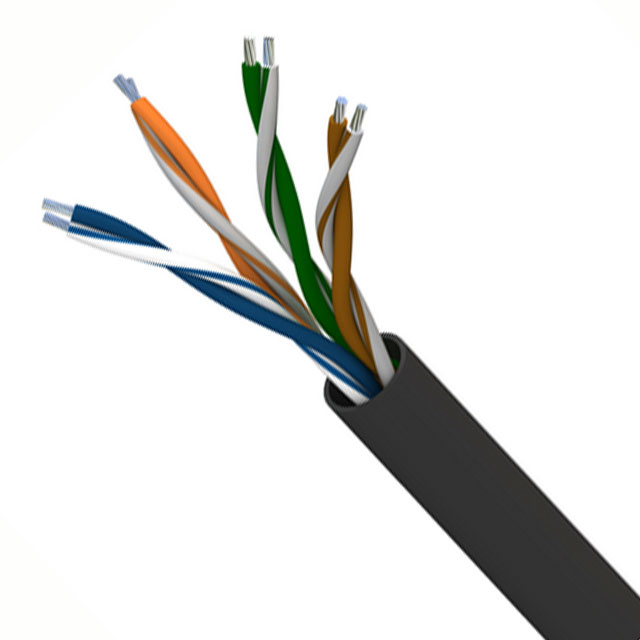

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5 Cable Black 24 AWG 1000.0' (304.8m)
