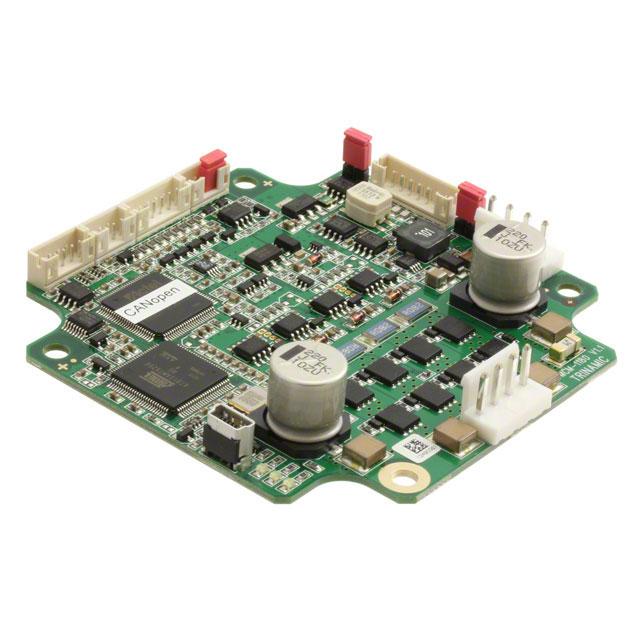

TMCM-1180-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 5.5A 18-55V LOAD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 5.5A 18-55V LOAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1180-CANOPEN	TMCM-1180 Series

Accessory Type	-	Cable Assembly
Control / Drive Type	Bipolar, Stepper	Bipolar, Stepper
Current - Output	5.5 A	5.5 A
For Use With/Related Products	-	TMCM-1181 Series
Interface	RS-485, RS-232, Step / Direction, USB, CAN	RS-485, RS-232, Step / Direction, USB, CAN
Motor Type	Stepper	Stepper
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Type	Board	Board
Usage	-	Motor
Voltage - Load [Max]	55 V	55 V
Voltage - Load [Min]	18 V	18 V
Voltage - Supply [Max]	48 V	48 V
Voltage - Supply [Min]	24 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 384.68

STEPPER DRIVER 5.5A 18-55V LOAD

Part	Voltage - Load [Min]	Voltage - Load [Max]	Control / Drive Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Motor Type	Current - Output	Usage	For Use With/Related Products	Accessory Type	Interface
Analog Devices Inc./Maxim Integrated TMCM-1180-TMCL	18 V	55 V	Bipolar, Stepper	48 V	24 V	50 °C	-20 C	Board	Chassis Mount	Stepper	5.5 A
Analog Devices Inc./Maxim Integrated TMCM-1180-CABLE												Motor	TMCM-1181 Series	Cable Assembly
Analog Devices Inc./Maxim Integrated TMCM-1180-CANOPEN	18 V	55 V	Bipolar, Stepper	48 V	24 V	50 °C	-20 C	Board	Chassis Mount	Stepper	5.5 A				CAN, RS-232, RS-485, Step / Direction, USB

General part information

Stepper, Bipolar 24 ~ 48VDC Supply 5.5A 18 ~ 55V Load
