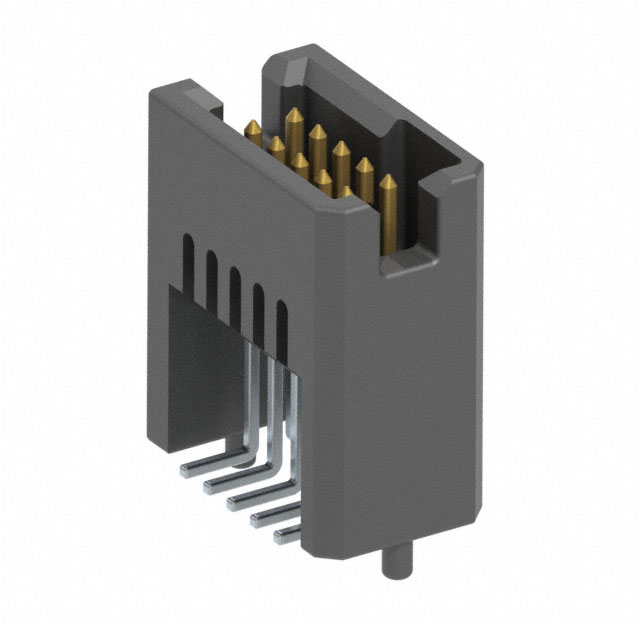

TFM-105-32-F-D-A-K-TR

Active

Samtec Inc.

CONN HEADER SMD 10POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-105-32-F-D-A-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-105 Series

...

Part	Insulation Material	Material Flammability Rating	Shrouding	Number of Positions Loaded	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Mounting Type	Insulation Color	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Number of Rows	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. TFM-105-01-F-S	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.33 mm	0.131 in	Push-Pull	Through Hole	Black	2.9 A	Square	3 µin	0.076 µm	Gold	275 VAC	1	Header	5.6 mm	0.22 in	-55 °C	125 °C	Board to Board Cable	0.078 in	1.98 mm	Phosphor Bronze	Male Pin
Samtec Inc. TFM-105-02-SM-D-A-P	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.33 mm	0.131 in	Push-Pull	Surface Mount	Black	2.9 A	Square	30 Áin	0.76 Ám	Gold	275 VAC	2	Header	5.6 mm	0.22 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide Pick and Place	10
Samtec Inc. TFM-105-32-S-D-LC-K-TR	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.53 mm	0.139 in	Push-Pull	Surface Mount	Black	2.9 A	Square	30 Áin	0.76 Ám	Gold	275 VAC	2	Header	11.05 mm	0.435 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Lock Pick and Place	10
Samtec Inc. TFM-105-11-L-D-A	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.53 mm	0.139 in	Push-Pull	Through Hole	Black	2.9 A	Square	15 µin	0.38 µm	Gold	275 VAC	2	Header	7.37 mm	0.29 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide	10	2.03 mm	0.08 in
Samtec Inc. TFM-105-01-S-D-A	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.33 mm	0.131 in	Push-Pull	Through Hole	Black	2.9 A	Square	30 Áin	0.76 Ám	Gold	275 VAC	2	Header	5.6 mm	0.22 in	-55 °C	125 °C	Board to Board Cable	0.078 in	1.98 mm	Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide	10
Samtec Inc. TFM-105-01-L-D-WT-K	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.33 mm	0.131 in	Push-Pull	Through Hole	Black	2.9 A	Square	15 µin	0.38 µm	Gold	275 VAC	2	Header	5.6 mm	0.22 in	-55 °C	125 °C	Board to Board Cable	0.078 in	1.98 mm	Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Pick and Place Solder Retention	10
Samtec Inc. TFM-105-32-F-D-A-K	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.53 mm	0.139 in	Push-Pull	Surface Mount	Black	2.9 A	Square	3 µin	0.076 µm	Gold	275 VAC	2	Header	11.05 mm	0.435 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide Pick and Place	10
Samtec Inc. TFM-105-02-S-D-SN2	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.33 mm	0.131 in	Push-Pull	Surface Mount	Black	2.9 A	Square	30 Áin	0.76 Ám	Gold	275 VAC	2	Header	5.6 mm	0.22 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Solder Retention	10
Samtec Inc. TFM-105-32-F-D-A-K-TR	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.53 mm	0.139 in	Push-Pull	Surface Mount	Black	2.9 A	Square	3 µin	0.076 µm	Gold	275 VAC	2	Header	11.05 mm	0.435 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide Pick and Place	10
Samtec Inc. TFM-105-32-F-D-SA-K-TR	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	All	Solder	Tin	0.05 in	1.27 mm	3.53 mm	0.139 in	Push-Pull	Surface Mount	Black	2.9 A	Square	3 µin	0.076 µm	Gold	275 VAC	2	Header	11.05 mm	0.435 in	-55 °C	125 °C	Board to Board Cable			Phosphor Bronze	Male Pin	0.05 in	1.27 mm	Board Guide Pick and Place	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	275	$ 1.43

Description

General part information

TFM-105 Series

Connector Header Surface Mount 10 position 0.050" (1.27mm)
