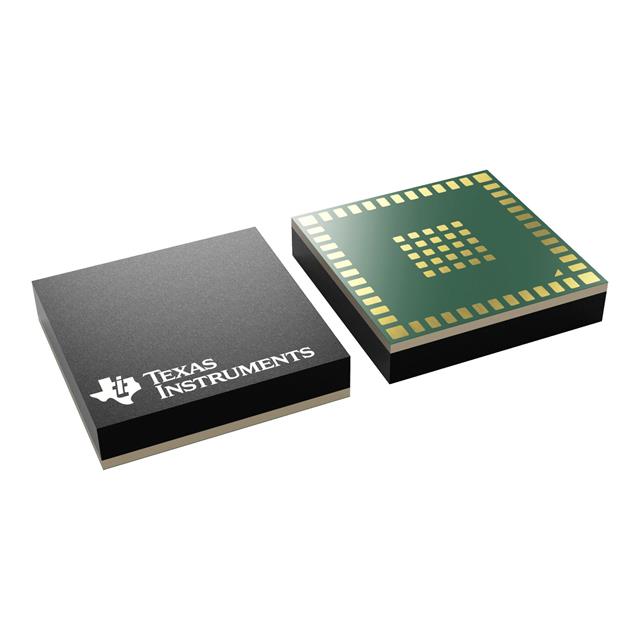

CC2652PSIPMOTR

Active

Texas Instruments

SIMPLELINK™ MULTIPROTOCOL 2.4-GHZ WIRELESS SYSTEM-IN-PACKAGE MODULE WITH INTEGRATED POWER AMPLIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Configuring Bluetooth LE devices for Direct Test Mode +11

CC2652PSIPMOTR

Active

Texas Instruments

SIMPLELINK™ MULTIPROTOCOL 2.4-GHZ WIRELESS SYSTEM-IN-PACKAGE MODULE WITH INTEGRATED POWER AMPLIFIER

Deep-Dive with AI

DocumentsDatasheet Configuring Bluetooth LE devices for Direct Test Mode +11

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC2652PSIPMOTR

Antenna Type	Antenna Not Included
Current - Receiving	7.3 mA
Current - Transmitting [Max]	33 mA
Current - Transmitting [Min]	7.9 mA
Data Rate	2 Mbps
Frequency [Max]	2.48 GHz
Frequency [Min]	2.4 GHz
Memory Size	352 kB, 88 kB
Mounting Type	Surface Mount
Operating Temperature [custom]	-40 °C, 105 °C
Package / Case	73-SMD Module
Power - Output	10 dBm
Protocol	Thread, Bluetooth v5.2, Zigbee®
RF Family/Standard	Bluetooth, 802.15.4
Sensitivity	-103 dBm
Serial Interfaces	I2C, I2S, SPI, UART, JTAG, GPIO, ADC
Utilized IC / Part	CC2652P
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

CC2652PSIP Series

SimpleLink™ multiprotocol 2.4-GHz wireless system-in-package module with integrated power amplifier

Part	Mounting Type	Frequency [Min]	Frequency [Max]	Power - Output	Sensitivity	Package / Case	Memory Size	Data Rate	Current - Receiving	Utilized IC / Part	Protocol	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Current - Transmitting [Max]	Current - Transmitting [Min]	RF Family/Standard	Operating Temperature [custom]
Texas Instruments CC2652PSIPMOTR	Surface Mount	2.4 GHz	2.48 GHz	10 dBm	-103 dBm	73-SMD Module	88 kB, 352 kB	2 Mbps	7.3 mA	CC2652P	Bluetooth v5.2, Thread, Zigbee®	ADC, GPIO, I2C, I2S, JTAG, SPI, UART	1.8 V	3.8 V	Antenna Not Included	33 mA	7.9 mA	802.15.4, Bluetooth	-40 °C, 105 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.53
		10	$ 7.72
		25	$ 7.16
	Digi-Reel®	1	$ 8.53
		10	$ 7.72
		25	$ 7.16
	Tape & Reel (TR)	2000	$ 3.73
Texas Instruments	LARGE T&R	1	$ 5.49
		100	$ 4.48
		250	$ 3.52
		1000	$ 2.98

Description

General part information

CC2652PSIP Series

The SimpleLink™ CC2652PSIP is a System-in-Package (SiP) certified module, multiprotocol 2.4 GHz wireless microcontroller (MCU) supportingThread,Zigbee,Bluetooth5.2 Low Energy, IEEE 802.15.4, IPv6-enabled smart objects (6LoWPAN), proprietary systems, including the TI 15.4-Stack (2.4 GHz), andconcurrent multiprotocolthrough a Dynamic Multiprotocol Manager (DMM) driver. The device is optimized for low-power wireless communication and advanced sensing inbuilding security systems,HVAC,medical,wired networking,portable electronics,home theater & entertainment, andconnected peripheralsmarkets. The highlighted features of this device include:

The CC2652PSIP device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi,BluetoothLow Energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs that all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink™ platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change. For more information, visitSimpleLink™ MCU platform.
