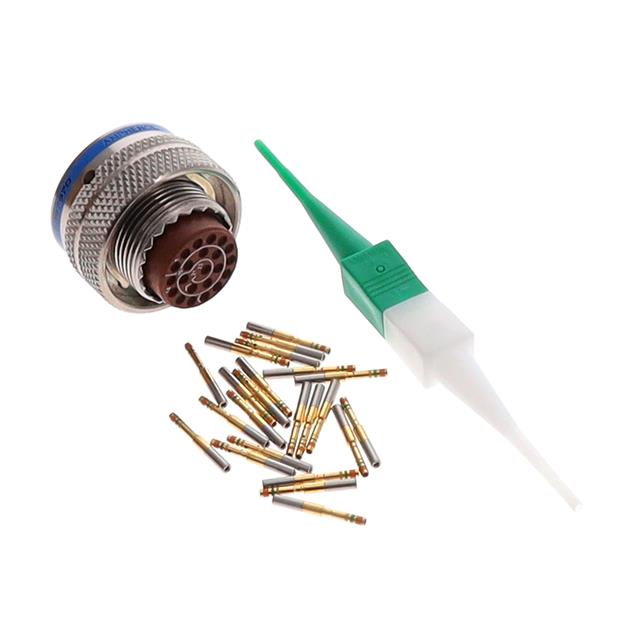

MS27473T12F35SA

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 22POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27473T12F35SA

Applications	Military, Aviation
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series II
Shell Finish	Nickel
Shell Material	Aluminum
Shell Size - Insert [Max] [diameter]	35
Shell Size - Insert [Min] [diameter]	12
Shielding	Unshielded
Termination	Crimp

Part	Contact Material	Termination	Fastening Type	Applications	Primary Material	Grade	Features	Contact Finish - Mating	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Mounting Type	Shielding	Shell Size - Insert	Ingress Protection	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insert Material	Orientation	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Number of Positions
Amphenol Aerospace Operations MS27473T12F3S	Copper Alloy	Crimp	Bayonet Lock	Aviation Military	Metal	Military	Coupling Nut	Gold	Silver	Nickel	-65 ░C	200 °C	MIL-DTL-38999 Series II	Free Hanging (In-Line)	Unshielded	12-3	Environment Resistant	Aluminum	1.27 µm	50 µin	Female Sockets Plug	Plastic	N
Amphenol Aerospace Operations MS27473T12F35SA	Copper Alloy	Crimp	Bayonet Lock	Aviation Military	Metal	Military	Coupling Nut	Gold	Silver	Nickel	-65 ░C	200 °C	MIL-DTL-38999 Series II	Free Hanging (In-Line)	Unshielded		Environment Resistant	Aluminum	1.27 µm	50 µin	Female Sockets Plug	Plastic	A	35	12	22 positions

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Position Circular Connector Plug, Female Sockets Crimp
