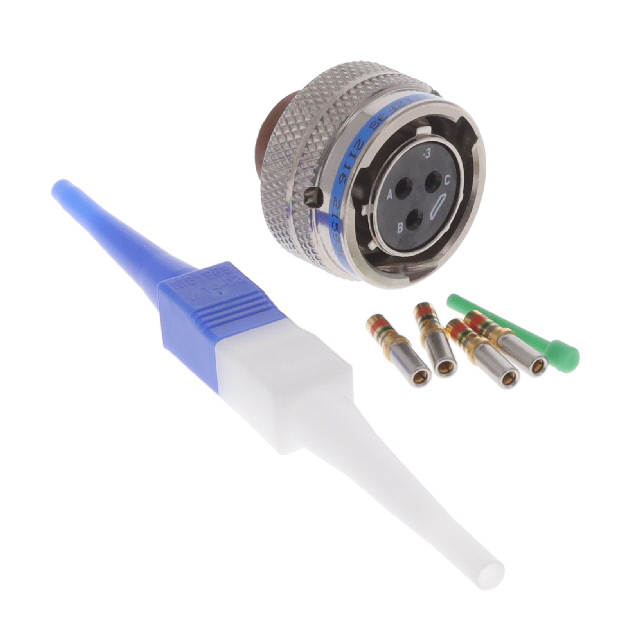

MS27473T12F3S
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS27473T12F3S
ActiveAmphenol Aerospace Operations
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27473T12F3S |
|---|---|
| Applications | Military, Aviation |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series II |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 12-3 |
| Shielding | Unshielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.50 | |
| 10 | $ 93.03 | |||
| 25 | $ 78.34 | |||
| 50 | $ 67.66 | |||
| 100 | $ 57.25 | |||
| Bulk | 1 | $ 152.34 | ||
| 10 | $ 119.68 | |||
| 25 | $ 113.65 | |||
| 50 | $ 108.91 | |||
Description
General part information
MS27473T12F Series
3 Position Circular Connector Plug, Female Sockets Crimp
