SN-T5-2

Active

MPD (Memory Protection Devices)

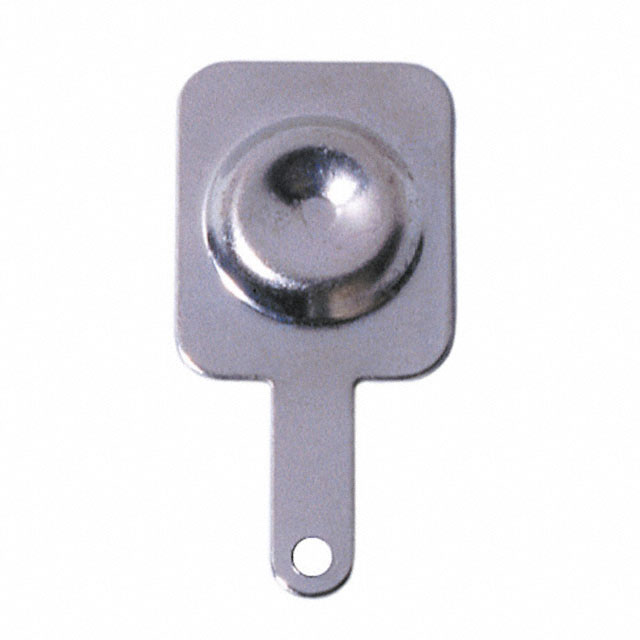

BATT CONTACT SOLID AA SOLDER LUG

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATT CONTACT SOLID AA SOLDER LUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SN-T5-2	SN-T5 Series

Battery Cell Size	AA	AA
Battery Type, Function	Cylindrical, Contact (Single)	Cylindrical, Contact (Single), Contact (Dual)
Height Above Board	-	0.512 in
Height Above Board	-	13 mm
Mounting Type	Custom	Custom
Number of Cells	-	2
Style	Contact Solid	Contact Spring (Coil), Contact Spring and Solid Button, Contact Solid
Termination Style	Solder Lug	Solder Lug, PC Pin

BATT CONTACT SPR AA SOLDER LUG

Part	Mounting Type	Battery Cell Size	Style	Termination Style	Battery Type, Function	Number of Cells	Height Above Board [z]	Height Above Board [z]
MPD (Memory Protection Devices) SN-T5-1	Custom	AA	Contact Spring (Coil)	Solder Lug	Contact (Single), Cylindrical
MPD (Memory Protection Devices) SN-T5-4		AA	Contact Spring and Solid Button	PC Pin	Contact (Dual), Cylindrical	2	0.512 in	13 mm
MPD (Memory Protection Devices) SN-T5-2	Custom	AA	Contact Solid	Solder Lug	Contact (Single), Cylindrical
MPD (Memory Protection Devices) SN-T5-3		AA	Contact Spring and Solid Button	PC Pin	Contact (Dual), Cylindrical	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Contact Solid (Positive) AA Cell Solder Lug

Technical documentation and resources

No documents available
