SN-T5-4

Active

MPD (Memory Protection Devices)

BATT CONT SPR AA 2 CELL PC PIN

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATT CONT SPR AA 2 CELL PC PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

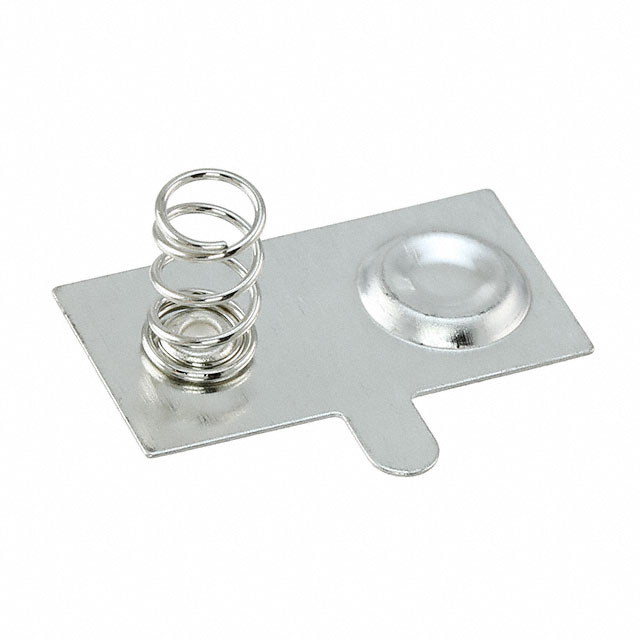

Battery Contact Spring and Solid Button AA 2 Cell PC Pin

Technical documentation and resources

Specification	SN-T5-4	SN-T5 Series

Battery Cell Size	AA	AA
Battery Type, Function	Contact (Dual), Cylindrical	Cylindrical, Contact (Single), Contact (Dual)
Height Above Board [z]	0.512 in	0.512 in
Height Above Board [z]	13 mm	13 mm
Mounting Type	-	Custom
Number of Cells	2	2
Style	Contact Spring and Solid Button	Contact Spring (Coil), Contact Spring and Solid Button, Contact Solid
Termination Style	PC Pin	Solder Lug, PC Pin

Part	Mounting Type	Battery Cell Size	Style	Termination Style	Battery Type, Function	Number of Cells	Height Above Board [z]	Height Above Board [z]
MPD (Memory Protection Devices) SN-T5-1	Custom	AA	Contact Spring (Coil)	Solder Lug	Contact (Single), Cylindrical
MPD (Memory Protection Devices) SN-T5-4		AA	Contact Spring and Solid Button	PC Pin	Contact (Dual), Cylindrical	2	0.512 in	13 mm
MPD (Memory Protection Devices) SN-T5-2	Custom	AA	Contact Solid	Solder Lug	Contact (Single), Cylindrical
MPD (Memory Protection Devices) SN-T5-3		AA	Contact Spring and Solid Button	PC Pin	Contact (Dual), Cylindrical	2
