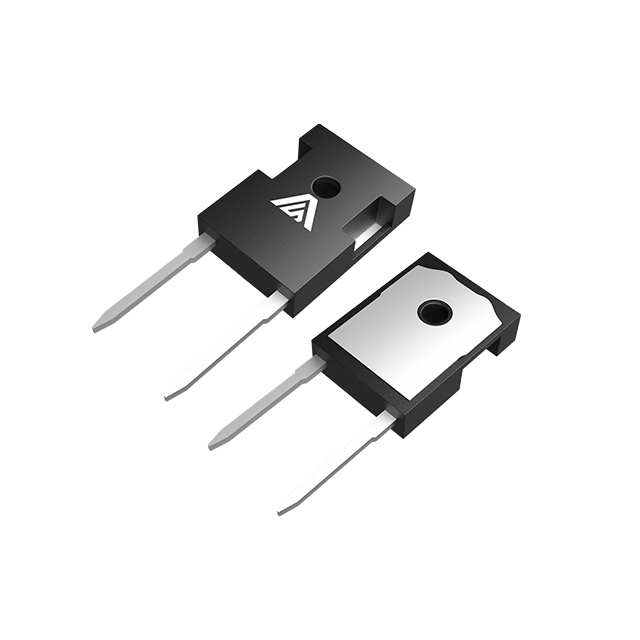

AS3D030065C

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

650V,30A SILICON CARBIDE SCHOTTK

Search across all available documentation for this part.

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

650V,30A SILICON CARBIDE SCHOTTK

Technical Specifications

Parameters and characteristics for this part

Specification	AS3D030065C

Capacitance @ Vr, F	1805 pF
Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-247-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

650V,30A SILICON CARBIDE SCHOTTK

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Speed	Supplier Device Package	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If
ANBON SEMICONDUCTOR (INT'L) LIMITED AS3D030065C	TO-247-2	650 V	Through Hole	175 ░C	-55 C	20 µA	SiC (Silicon Carbide) Schottky	No Recovery Time	TO-247-2	0 ns	35 A	1805 pF	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 35A Through Hole TO-247-2
