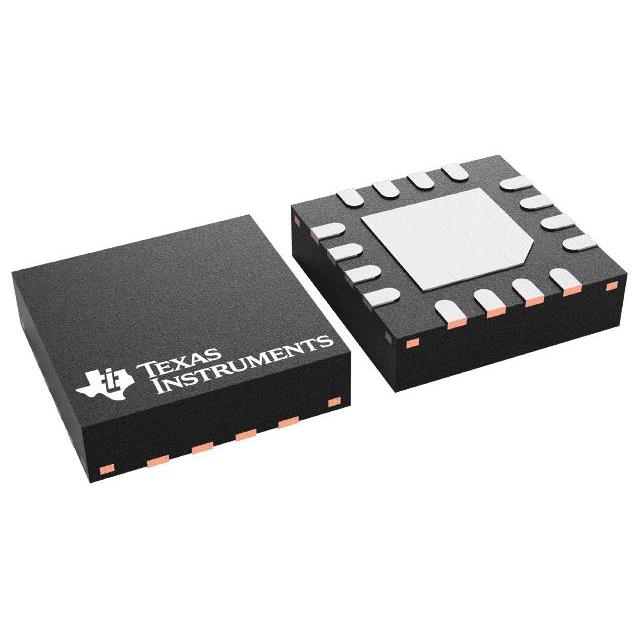

DAC53204RTET
Active10-BIT 4-CHANNEL VOLTAGE/CURRENT OUTPUT SMART DAC WITH HI-Z, EEPROM AND WAVEFORM GENERATOR
Deep-Dive with AI
Search across all available documentation for this part.
DAC53204RTET
Active10-BIT 4-CHANNEL VOLTAGE/CURRENT OUTPUT SMART DAC WITH HI-Z, EEPROM AND WAVEFORM GENERATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DAC53204RTET | DAC53204 Series |
|---|---|---|
| Architecture | String DAC | String DAC |
| Data Interface | SPI, I2C | SPI, I2C |
| Differential Output | False | False |
| INL/DNL (LSB) | 1 LSB, 1 LSB | 1 LSB |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits | 10 | 10 |
| Number of D/A Converters | 4 | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Voltage or Current - Buffered | Voltage or Current - Buffered |
| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Reference Type | Internal, External | Internal, External |
| Settling Time | 25 µs, 60 µs | 25 - 60 µs |
| Supplier Device Package | 16-WQFN (3x3) | 16-WQFN (3x3) |
| Voltage - Supply, Analog [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Analog [Min] | 1.71 V | 1.71 V |
| Voltage - Supply, Digital [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Digital [Min] | 1.7 V | 1.62 - 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC53204 Series
10-bit 4-channel voltage/current output smart DAC with Hi-Z, EEPROM and waveform generator
| Part | Data Interface | Number of D/A Converters | Package / Case | INL/DNL (LSB) | Supplier Device Package | Number of Bits | Differential Output | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Settling Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Reference Type | Output Type | Architecture |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DAC53204RTETThe 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
The 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation. | I2C, SPI | 4 | 16-WFQFN Exposed Pad | 1 LSB, 1 LSB | 16-WQFN (3x3) | 10 | 5.5 V | 1.7 V | 25 µs, 60 µs | 125 °C | -40 °C | Surface Mount | 1.71 V | 5.5 V | External, Internal | Voltage or Current - Buffered | String DAC | |
Texas Instruments DAC53204RTERThe 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
The 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation. | I2C, SPI | 4 | 16-WFQFN Exposed Pad | 1 LSB, 1 LSB | 16-WQFN (3x3) | 10 | 5.5 V | 1.62 V | 25 µs | 125 °C | -40 °C | Surface Mount | 1.71 V | 5.5 V | External, Internal | Voltage or Current - Buffered | String DAC |
Description
General part information
DAC53204 Series
The 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
The 12-bit DAC63204, 10-bit DAC53204, and 8-bit DAC43204 ( DACx3204) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3204 support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, PMBus, and SPI interfaces and contain an internal reference.
