W987D2HBJX7E
ActiveWinbond Electronics

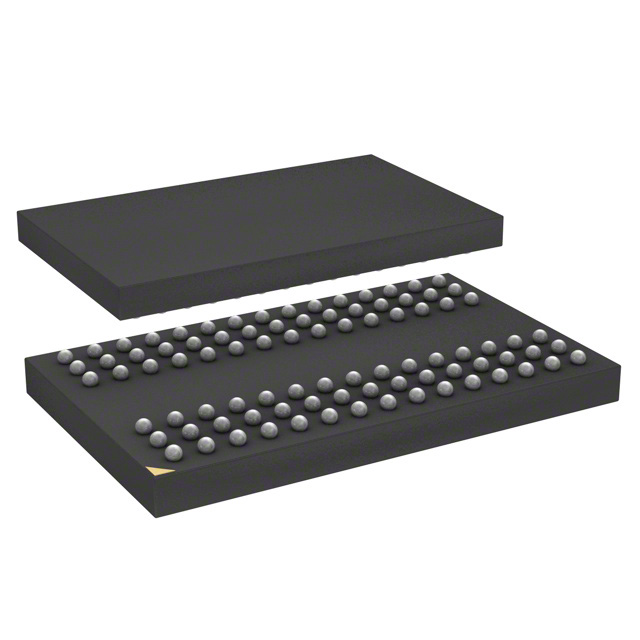

IC DRAM 128MBIT PAR 90VFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W987D2HBJX7E
ActiveWinbond Electronics
IC DRAM 128MBIT PAR 90VFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W987D2HBJX7E | W987D2 Series |
|---|---|---|
| Access Time | 5.4 ns | 5.4 ns |
| Clock Frequency | 133 MHz | 133 - 166 MHz |
| Memory Format | DRAM | DRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 4M x 32 | 4M x 32 |
| Memory Size | 128 Mb | 128 Mb |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Package / Case | 90-TFBGA | 90-TFBGA |
| Supplier Device Package | 90-VFBGA (8x13) | 90-VFBGA (8x13) |
| Technology | SDRAM - Mobile LPSDR | SDRAM - Mobile LPSDR |
| Voltage - Supply [Max] | 1.95 V | 1.95 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 V |
| Write Cycle Time - Word, Page | 15 ns | 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
W987D2 Series
IC DRAM 128MBIT PAR 90VFBGA
| Part | Memory Size | Supplier Device Package | Memory Format | Memory Organization | Voltage - Supply [Max] | Voltage - Supply [Min] | Clock Frequency | Memory Interface | Write Cycle Time - Word, Page | Operating Temperature [Min] | Operating Temperature [Max] | Memory Type | Mounting Type | Access Time | Technology | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W987D2HBJX7E TR | 128 Mb | 90-VFBGA (8x13) | DRAM | 4M x 32 | 1.95 V | 1.7 V | 133 MHz | Parallel | 15 ns | -25 °C | 85 °C | Volatile | Surface Mount | 5.4 ns | SDRAM - Mobile LPSDR | 90-TFBGA |
Winbond Electronics W987D2HBJX6I | 128 Mb | 90-VFBGA (8x13) | DRAM | 4M x 32 | 1.95 V | 1.7 V | 166 MHz | Parallel | 15 ns | -40 °C | 85 °C | Volatile | Surface Mount | 5.4 ns | SDRAM - Mobile LPSDR | 90-TFBGA |
Winbond Electronics W987D2HBJX6I TR | 128 Mb | 90-VFBGA (8x13) | DRAM | 4M x 32 | 1.95 V | 1.7 V | 166 MHz | Parallel | 15 ns | -40 °C | 85 °C | Volatile | Surface Mount | 5.4 ns | SDRAM - Mobile LPSDR | 90-TFBGA |
Winbond Electronics W987D2HBJX7E | 128 Mb | 90-VFBGA (8x13) | DRAM | 4M x 32 | 1.95 V | 1.7 V | 133 MHz | Parallel | 15 ns | -25 °C | 85 °C | Volatile | Surface Mount | 5.4 ns | SDRAM - Mobile LPSDR | 90-TFBGA |
Description
General part information
W987D2 Series
SDRAM - Mobile LPSDR Memory IC 128Mbit Parallel 133 MHz 5.4 ns 90-VFBGA (8x13)
