UF225(99)APA23-H1C2F
ActiveMechatronics Fan Group

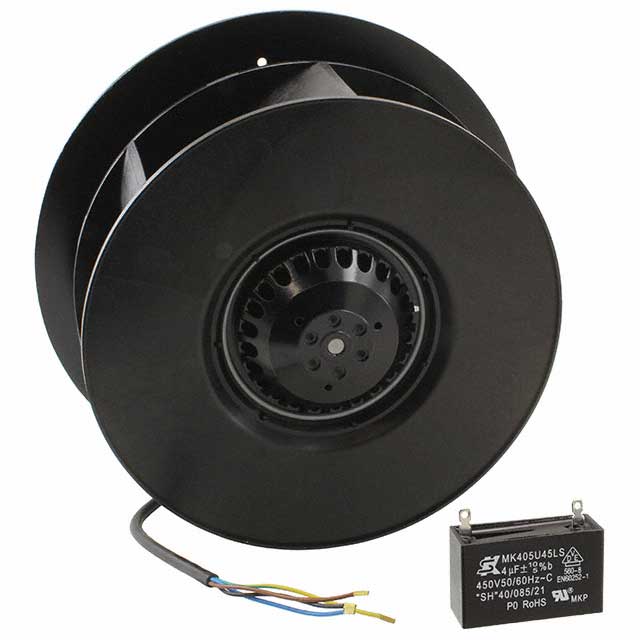

IMPELLER 225X99MM 230VAC RING
Deep-Dive with AI
Search across all available documentation for this part.
UF225(99)APA23-H1C2F
ActiveMechatronics Fan Group
IMPELLER 225X99MM 230VAC RING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UF225(99)APA23-H1C2F | UF225 Series |
|---|---|---|
| Air Flow | 15.32 m³/min | 15.32 - 21.56 mł/min |
| Air Flow | 547 CFM | 547 - 770 CFM |
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 0.7 A | 0.56 - 600 A |
| Fan Type | Motorized Impellers | Motorized Impellers |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material - Frame | Aluminum | Aluminum |
| Noise | 71 dB(A) | 71 - 75 dB(A) |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Power (Watts) | 157 W | 125 - 160 W |
| RPM | 2950 RPM | 2950 - 3000 RPM |
| Size / Dimension [diameter] | 259 mm | 225 - 259 mm |
| Static Pressure | 647.7 Pa | 574.2 - 647.7 Pa |
| Static Pressure | 2.6 in H2O | 2.305 - 2.6 in H2O |
| Termination | 4 Wire Leads | 4 Wire Leads |
| Voltage - Rated | 230 VAC | 115 - 230 VAC |
| Weight | - | 2.3 kg |
| Weight | - | 5 lbs |
| Weight [custom] | 5.7 lbs | 5.7 lbs |
| Weight [custom] | 2.6 kg | 2.6 kg |
| Width | - | 69 mm |
| Width [y] | 117 mm | 85 - 117 mm |
UF225 Series
FAN IMP MTRZD 225X69MM 230VAC
| Part | Static Pressure | Static Pressure | Approval Agency | Air Flow | Air Flow | Current Rating (Amps) | Weight | Weight | Material - Blade | Bearing Type | Termination | Width [x] | Material - Frame | Size / Dimension [diameter] | RPM | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Noise | Fan Type | Features | Width [y] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group UF225(69)APA23-H1C2A | 2.305 in H2O | 574.2 Pa | CE, cUL, TUV, UL | 15.4 mł/min | 550 CFM | 0.56 A | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | 69 mm | Aluminum | 225 mm | 2950 RPM | 125 W | 50 °C | -40 °C | -40 °C | 50 °C | 230 VAC | 72 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | |||
Mechatronics Fan Group UF225(85)APA12-H1C2A | 2.5 in H2O | 622.7 Pa | CE, cUL, TUV, UL | 19.04 m³/min | 680 CFM | 1.2 A | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 225 mm | 3000 RPM | 135 W | 50 °C | -40 °C | -40 °C | 50 °C | 115 VAC | 75 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 85 mm | |||
Mechatronics Fan Group UF225(85)APA12-H1C2F | CE, cUL, TUV, UL | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 225 mm | 50 °C | -40 °C | -40 °C | 50 °C | 115 VAC | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 85 mm | |||||||||||
Mechatronics Fan Group UF225(99)APA23-H1C2F | 2.6 in H2O | 647.7 Pa | CE, cUL, TUV, UL | 15.32 m³/min | 547 CFM | 0.7 A | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 259 mm | 2950 RPM | 157 W | 50 °C | -40 °C | -40 °C | 50 °C | 230 VAC | 71 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 117 mm | 5.7 lbs | 2.6 kg | |||
Mechatronics Fan Group UF225(99)APA12-H1C2A | 2.6 in H2O | 647.7 Pa | CE, cUL, TUV, UL | 21.56 m³/min | 770 CFM | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 225 mm | 2950 RPM | 160 W | 50 °C | -40 °C | -40 °C | 50 °C | 115 VAC | 71 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 99 mm | ||||
Mechatronics Fan Group UF225(85)APA23-H1C2A | 2.5 in H2O | 622.7 Pa | CE, cUL, TUV, UL | 19.04 m³/min | 680 CFM | 600 mA | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 225 mm | 3000 RPM | 135 W | 50 °C | -40 °C | -40 °C | 50 °C | 230 VAC | 75 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 85 mm | |||
Mechatronics Fan Group UF225(99)APA23-H1C2A | 2.6 in H2O | 647.7 Pa | CE, cUL, TUV, UL | 21.56 m³/min | 770 CFM | 0.7 A | 2.3 kg | 5 lbs | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 225 mm | 2950 RPM | 157 W | 50 °C | -40 °C | -40 °C | 50 °C | 230 VAC | 71 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 99 mm | |||
Mechatronics Fan Group UF225(99)APA12-H1C2F | 2.6 in H2O | 647.7 Pa | CE, cUL, TUV, UL | 15.32 m³/min | 547 CFM | Nylon, Polyamide (PA) | Ball | 4 Wire Leads | Aluminum | 259 mm | 2950 RPM | 160 W | 50 °C | -40 °C | -40 °C | 50 °C | 115 VAC | 71 dB(A) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 117 mm | 5.7 lbs | 2.6 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 141.63 | |
| 16 | $ 127.29 | |||
| 32 | $ 125.50 | |||
| 56 | $ 117.43 | |||
Description
General part information
UF225 Series
Fan Motorized Impellers 230VAC Round - 259mm Dia Ball 547.0 CFM (15.32m³/min) 4 Wire Leads
