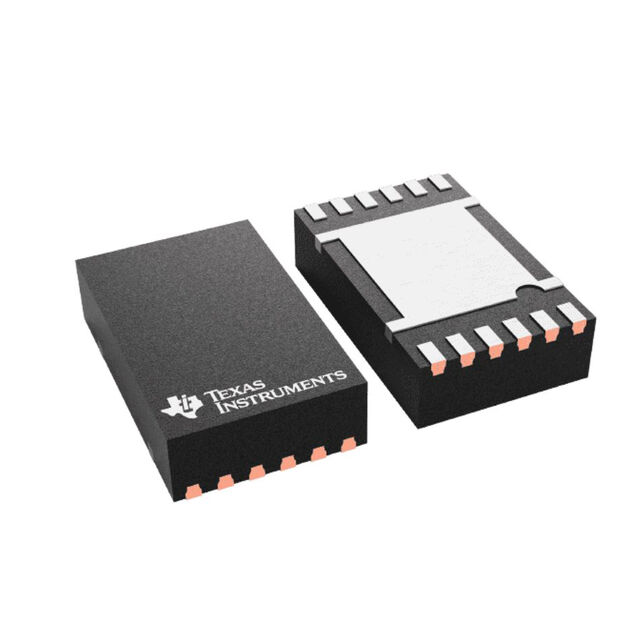

BQ28Z620DRZR
ActiveBATTERY FUEL GAUGE WITH INTEGRATED PROTECTOR FOR 1-SERIES TO 2 SERIES PACKS WITH 1.2-V I/O 12-SON -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
BQ28Z620DRZR
ActiveBATTERY FUEL GAUGE WITH INTEGRATED PROTECTOR FOR 1-SERIES TO 2 SERIES PACKS WITH 1.2-V I/O 12-SON -40 TO 85
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ28Z620DRZR |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Fault Protection | Over Current, Over Voltage, Over Temperature |
| Function | Battery Balancing |
| Interface | I2C |
| Mounting Type | Surface Mount |
| Number of Cells [Max] | 2 |
| Number of Cells [Min] | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-VSON (2.5x4) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 3.89 | |
| 10 | $ 2.94 | |||
| 25 | $ 2.70 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.24 | |||
| 1000 | $ 2.18 | |||
| 3000 | $ 2.10 | |||
| Digikey | Cut Tape (CT) | 1 | $ 4.16 | |
| 10 | $ 3.73 | |||
| 25 | $ 3.53 | |||
| 100 | $ 3.06 | |||
| 250 | $ 2.90 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.20 | |||
| Digi-Reel® | 1 | $ 4.16 | ||
| 10 | $ 3.73 | |||
| 25 | $ 3.53 | |||
| 100 | $ 3.06 | |||
| 250 | $ 2.90 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.20 | |||
| Tape & Reel (TR) | 3000 | $ 2.09 | ||
| LCSC | N/A | 1 | $ 4.74 | |
| 10 | $ 4.63 | |||
| 30 | $ 4.56 | |||
| 100 | $ 4.49 | |||
| Mouser Electronics | N/A | 1 | $ 3.90 | |
| 10 | $ 2.71 | |||
| 100 | $ 2.45 | |||
| 250 | $ 2.33 | |||
| 500 | $ 2.25 | |||
| 1000 | $ 2.19 | |||
| 3000 | $ 2.07 | |||
| Texas Instruments | LARGE T&R | 1 | $ 3.14 | |
| 100 | $ 2.75 | |||
| 250 | $ 1.93 | |||
| 1000 | $ 1.55 | |||
BQ28Z620 Series
Battery fuel gauge with integrated protector for 1-series to 2 series packs with 1.2-V I/O
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Mounting Type | Supplier Device Package | Package / Case | Number of Cells [Min] | Number of Cells [Max] | Interface | Battery Chemistry | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ28Z620DRZR | 85 °C | -40 °C | Over Current, Over Temperature, Over Voltage | Surface Mount | 12-VSON (2.5x4) | 12-VFDFN Exposed Pad | 1 | 2 | I2C | Lithium Ion/Polymer | Battery Balancing |
Description
General part information
BQ28Z620 Series
The Texas Instruments BQ28Z620 device is a highly integrated, accurate, 1-series to 2-series cell gas gauge and protection solution, enabling autonomous charger control and cell balancing.
The BQ28Z620 device enables autonomous charge control through Master Mode I2C broadcasts of charging current and voltage information, eliminating software overhead that is typically incurred by the system’s host controller.
The BQ28Z620 device provides a fully integrated pack-based solution with a flash programmable custom reduced instruction-set CPU (RISC), safety protection, and authentication for 1- to 2-series cell Li-ion and Li-polymer battery packs.
