BQ51050BRHLR
ActiveQI (WPC) COMPLIANT HIGHLY INTEGRATED SECONDARY-SIDE DIRECT LITHIUM ION CHARGER. 20-VQFN 0 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
BQ51050BRHLR
ActiveQI (WPC) COMPLIANT HIGHLY INTEGRATED SECONDARY-SIDE DIRECT LITHIUM ION CHARGER. 20-VQFN 0 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ51050BRHLR | BQ51050 Series |
|---|---|---|
| Applications | Wireless Power Receiver | Wireless Power Receiver |
| Current - Supply | 8 mA | 8 mA |
| Function | - | Wireless Power Supply/Charging |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |

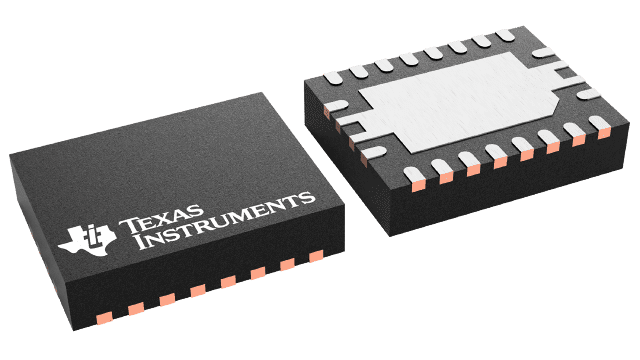

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Primary Attributes | - | Receiver |
| Secondary Attributes | - | On-Board LEDs |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5), 28-DSBGA |
| Type | - | Power Management |
| Utilized IC / Part | - | BQ51050B |
| Voltage - Supply [Max] | 10 V | 10 V |
| Voltage - Supply [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 4.71 | |
| 1 | $ 4.73 | |||
| 10 | $ 3.59 | |||
| 10 | $ 3.61 | |||
| 25 | $ 3.26 | |||
| 25 | $ 3.27 | |||
| 100 | $ 2.85 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.63 | |||
| 250 | $ 2.65 | |||
| 500 | $ 2.49 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.37 | |||
| 1000 | $ 2.38 | |||
| 3000 | $ 2.23 | |||
| 3000 | $ 2.24 | |||
| Digikey | Cut Tape (CT) | 1 | $ 4.39 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.53 | |||
| 100 | $ 3.22 | |||
| 250 | $ 2.90 | |||
| 500 | $ 2.61 | |||
| 1000 | $ 2.20 | |||
| Digi-Reel® | 1 | $ 4.39 | ||
| 10 | $ 3.92 | |||
| 25 | $ 3.53 | |||
| 100 | $ 3.22 | |||
| 250 | $ 2.90 | |||
| 500 | $ 2.61 | |||
| 1000 | $ 2.20 | |||
| Tape & Reel (TR) | 3000 | $ 2.09 | ||
| Farnell | N/A | 1 | $ 4.52 | |
| 10 | $ 3.41 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.17 | |||
| 100 | $ 3.05 | |||
| 100 | $ 3.05 | |||
| 250 | $ 2.81 | |||
| 250 | $ 2.81 | |||
| 500 | $ 2.54 | |||
| 500 | $ 2.54 | |||
| 1000 | $ 2.18 | |||
| 1000 | $ 2.18 | |||
| LCSC | N/A | 1 | $ 2.68 | |
| 1 | $ 2.68 | |||
| 10 | $ 2.33 | |||
| 10 | $ 2.33 | |||
| 30 | $ 2.11 | |||
| 30 | $ 2.11 | |||
| 100 | $ 1.61 | |||
| 100 | $ 1.61 | |||
| 500 | $ 1.51 | |||
| 500 | $ 1.51 | |||
| 1000 | $ 1.47 | |||
| 1000 | $ 1.47 | |||
| Mouser Electronics | N/A | 1 | $ 4.11 | |
| 1 | $ 4.11 | |||
| 10 | $ 3.19 | |||
| 10 | $ 3.19 | |||
| 100 | $ 2.87 | |||
| 100 | $ 2.87 | |||
| 250 | $ 2.65 | |||
| 250 | $ 2.65 | |||
| 500 | $ 2.51 | |||
| 500 | $ 2.51 | |||
| 1000 | $ 2.28 | |||
| 1000 | $ 2.28 | |||
| 3000 | $ 2.15 | |||
| 3000 | $ 2.15 | |||
| Newark | N/A | 1 | $ 4.83 | |
| 10 | $ 4.61 | |||
| 25 | $ 4.38 | |||
| 50 | $ 4.19 | |||
| 100 | $ 4.00 | |||
| 250 | $ 3.88 | |||
| 500 | $ 3.79 | |||
| 1000 | $ 3.72 | |||
| Quest Components | N/A | 1 | $ 3.92 | |
| 1 | $ 3.92 | |||
| 2 | $ 2.94 | |||
| 2 | $ 2.94 | |||
| Texas Instruments | LARGE T&R | 1 | $ 3.14 | |
| 100 | $ 2.75 | |||
| 250 | $ 1.93 | |||
| 1000 | $ 1.55 | |||
| Win Source Electronics | N/A | 35 | $ 1.44 | |
| 35 | $ 1.44 | |||
| 75 | $ 1.35 | |||
| 75 | $ 1.35 | |||
| 120 | $ 1.30 | |||
| 120 | $ 1.30 | |||
| 170 | $ 1.21 | |||
| 170 | $ 1.21 | |||
| 220 | $ 1.16 | |||
| 220 | $ 1.16 | |||
| 270 | $ 1.11 | |||
| 270 | $ 1.11 | |||
BQ51050 Series
EVAL BOARD FOR BQ51050
| Part | Supplied Contents | Primary Attributes | Function | Secondary Attributes | Type | Utilized IC / Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Supplier Device Package | Current - Supply | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ51050BEVM-764 | Board(s) | Receiver | Wireless Power Supply/Charging | On-Board LEDs | Power Management | BQ51050B | |||||||||
Texas Instruments BQ51050BRHLR | 0 °C | 125 °C | 4 V | 10 V | 20-VFQFN Exposed Pad | 20-VQFN (3.5x4.5) | 8 mA | Wireless Power Receiver | Surface Mount | ||||||
Texas Instruments BQ51050BYFPT | 0 °C | 125 °C | 4 V | 10 V | 28-DSBGA | 8 mA | Wireless Power Receiver | Surface Mount | |||||||
Texas Instruments BQ51050BRHLT | 0 °C | 125 °C | 4 V | 10 V | 20-VFQFN Exposed Pad | 20-VQFN (3.5x4.5) | 8 mA | Wireless Power Receiver | Surface Mount | ||||||
Texas Instruments BQ51050BYFPR | 0 °C | 125 °C | 4 V | 10 V | 28-DSBGA | 8 mA | Wireless Power Receiver | Surface Mount |
Description
General part information
BQ51050 Series
The bq5105x device is a high-efficiency, Qi-compliant wireless power receiver with an integrated Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105xB devices provide efficient AC-DC power conversion, integrates the digital controller required to comply with Qi v1.2 communication protocol, and provides all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charging. Together with the bq500212A transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solutions. By using near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter to stabilize the power transfer process. This feedback is established by using the Qi v1.2 communication protocol.
The bq5105xB devices integrate a low-impedance synchronous rectifier, low-dropout regulator (LDO), digital control, charger controller, and accurate voltage and current loops in a single package. The entire power stage (rectifier and LDO) use low-resistance N-MOSFETs (100-mΩ typical Rdson) to ensure high efficiency and low power dissipation.
The bq5105x device is a high-efficiency, Qi-compliant wireless power receiver with an integrated Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105xB devices provide efficient AC-DC power conversion, integrates the digital controller required to comply with Qi v1.2 communication protocol, and provides all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charging. Together with the bq500212A transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solutions. By using near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter to stabilize the power transfer process. This feedback is established by using the Qi v1.2 communication protocol.
