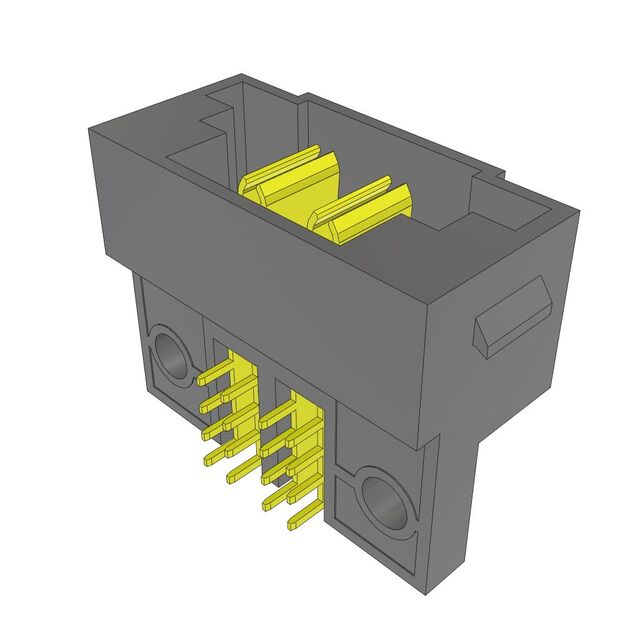

PET-02-01-L-RA-SD
ActiveSamtec Inc.
CONN HDR 2POS 6.35MM EDGE RA SLD
Deep-Dive with AI
Search across all available documentation for this part.
PET-02-01-L-RA-SD
ActiveSamtec Inc.
CONN HDR 2POS 6.35MM EDGE RA SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PET-02-01-L-RA-SD |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 40 A |
| Fastening Type | Locking Ramp, Screw Lock |
| Features | Flange |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Termination | Solder |
| Voltage Rating | 1025 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.11 | |
| 10 | $ 7.50 | |||
| 25 | $ 7.09 | |||
| 50 | $ 6.83 | |||
| 100 | $ 6.36 | |||
Description
General part information
PET-02 Series
2 Position Header, Male Blades Connector Solder 0.250" (6.35mm) Board Edge, Through Hole, Right Angle
