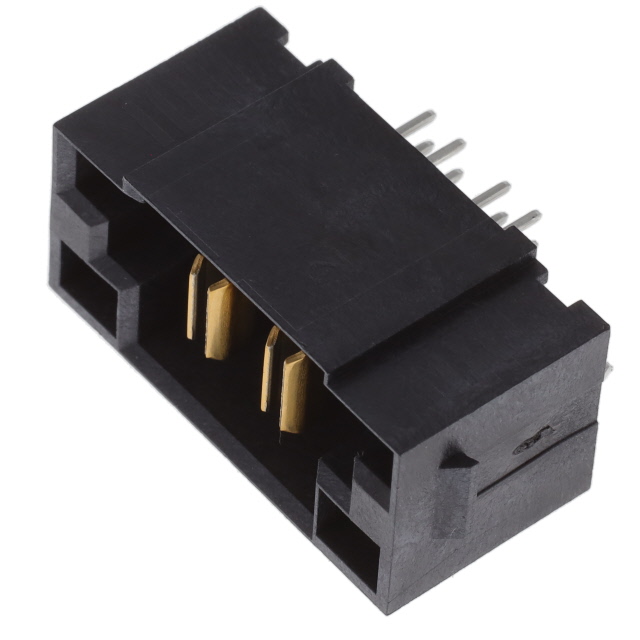

PET-02-02-L-VT-LC
ActiveSamtec Inc.
CONN HDR 2POS PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
PET-02-02-L-VT-LC
ActiveSamtec Inc.
CONN HDR 2POS PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PET-02-02-L-VT-LC |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 40 A |
| Fastening Type | Locking Ramp |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Voltage Rating | 1025 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.86 | |
| 10 | $ 8.19 | |||
| 25 | $ 7.74 | |||
| 50 | $ 7.46 | |||
| 100 | $ 5.80 | |||
| 500 | $ 5.44 | |||
| 1000 | $ 5.22 | |||
Description
General part information
PET-02 Series
2 Position Header, Male Blades Connector Solder Through Hole
