D01-9840801

Active

Harwin Inc.

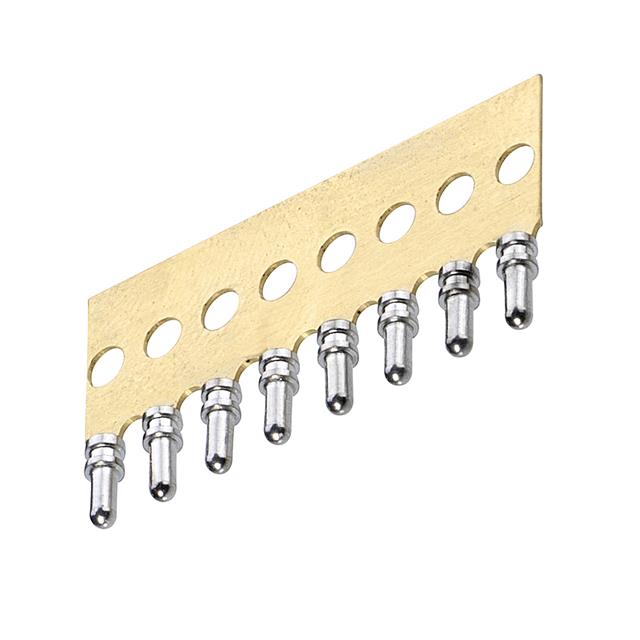

CONN, PCB SOCKET, 8POS, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

D01-9840801

Active

Harwin Inc.

CONN, PCB SOCKET, 8POS, 2.54MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9840801	D01-984 Series

Contact Finish	Gold	Gold
Contact Material	Beryllium Copper	Beryllium Copper
Features	Strip of 8	Strip of 9, Strip of 20, Strip of 32, Strip of 10, Strip of 8, Strip of 14
Flange Diameter [diameter]	1.45 mm	1.45 mm
Flange Diameter [diameter]	0.057 in	0.057 in
Insertion Force [Max]	6 N	6 N
Insertion Force [Min]	2 N	2 N
Length - Overall [x]	0.142 in	0.142 in
Length - Overall [x]	3.61 mm	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm	0.99 mm
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth [z]	3.15 mm	3.15 mm
Socket Depth [z]	0.124 "	0.124 "
Tail Type	No Tail	No Tail
Termination	Solder	Solder

D01-984 Series

CONN PIN RCPT .016-.020 SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Tail Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Insertion Force [Min]	Insertion Force [Max]	Socket Depth [z]	Socket Depth [z]	Contact Material	Features
Harwin Inc. D01-9841201	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper
Harwin Inc. D01-9840901	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 9
Harwin Inc. D01-9842001	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 20
Harwin Inc. D01-9843201	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 32
Harwin Inc. D01-9841001	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 10
Harwin Inc. D01-9840801	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 8
Harwin Inc. D01-9841401	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 1.87
Newark	Each	1	$ 2.20
		10	$ 1.98
		50	$ 1.80
		100	$ 1.75
		250	$ 1.70
		500	$ 1.66
		1000	$ 1.61
		2500	$ 1.50

Description

General part information

D01-984 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Datasheet

Sub Miniature Sockets Spec Sheet

Datasheet
