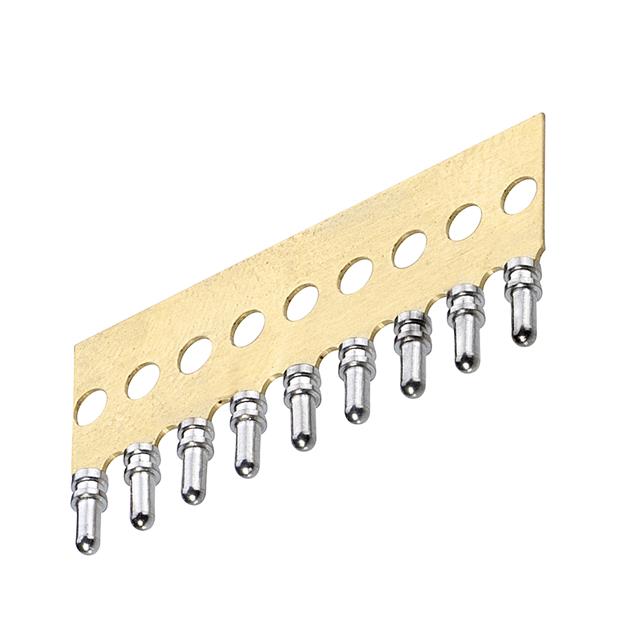

D01-9840901

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

D01-9840901

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Sub Miniature Sockets Spec Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	210	$ 1.86
Newark	Each	250	$ 2.48
		500	$ 2.24
		1000	$ 2.05
		2500	$ 1.86

Description

General part information

D01-984 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Datasheet

Sub Miniature Sockets Spec Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9840901	D01-984 Series

Contact Finish	Gold	Gold
Contact Material	Beryllium Copper	Beryllium Copper
Features	Strip of 9	Strip of 9, Strip of 20, Strip of 32, Strip of 10, Strip of 8, Strip of 14
Flange Diameter [diameter]	1.45 mm	1.45 mm
Flange Diameter [diameter]	0.057 in	0.057 in
Insertion Force [Max]	6 N	6 N
Insertion Force [Min]	2 N	2 N
Length - Overall [x]	0.142 in	0.142 in
Length - Overall [x]	3.61 mm	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm	0.99 mm
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth [z]	3.15 mm	3.15 mm
Socket Depth [z]	0.124 "	0.124 "
Tail Type	No Tail	No Tail
Termination	Solder	Solder

D01-984 Series

CONN PIN RCPT .016-.020 SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Tail Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Insertion Force [Min]	Insertion Force [Max]	Socket Depth [z]	Socket Depth [z]	Contact Material	Features
Harwin Inc. D01-9841201	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper
Harwin Inc. D01-9840901	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 9
Harwin Inc. D01-9842001	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 20
Harwin Inc. D01-9843201	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 32
Harwin Inc. D01-9841001	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 10
Harwin Inc. D01-9840801	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 8
Harwin Inc. D01-9841401	100 °C	-55 °C	Gold	Solder	No Tail	0.142 in	3.61 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	1.45 mm	0.057 in	2 N	6 N	3.15 mm	0.124 "	Beryllium Copper	Strip of 14
