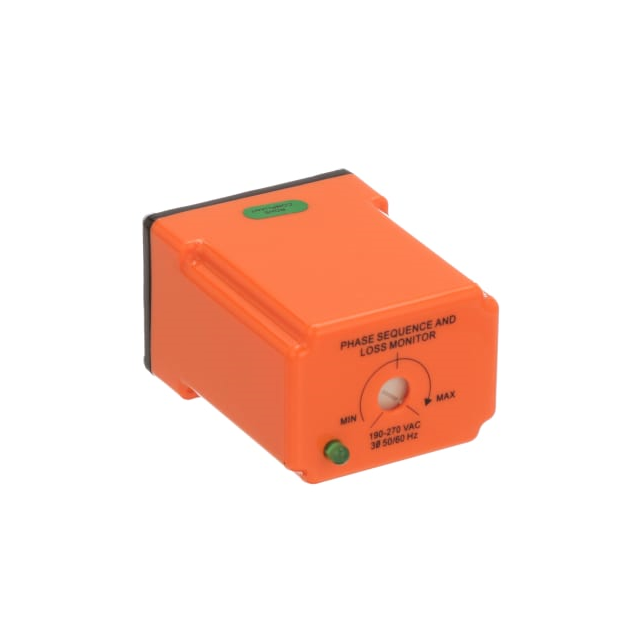

SLA-230-ASA

Active

ATC

PHASE MONITORING RELAY

Search across all available documentation for this part.

Active

ATC

PHASE MONITORING RELAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SLA-230-ASA	SLA-230 Series

Circuit	-	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC	5 - 240 A
Delay Time [Max]	0.5 s	0.5 s
Delay Time [Min]	0.25 Sec	0.25 Sec
Mounting Type	Socketable	Socketable, Chassis Mount
Trip Range [Max]	270 V AC	270 V AC
Trip Range [Min]	190 V AC	190 V AC
Trip Status	Energized High/Low	Energized High/Low
Type	Phase Sequence, Phase Loss, Voltage Sensing AC	Phase Sequence, Phase Loss, Voltage Sensing AC
Voltage - Supply	230 VAC	230 VAC

PHASE MONITORING RELAY

Part	Voltage - Supply	Mounting Type	Trip Range [Min]	Trip Range [Max]	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Type	Trip Status	Circuit
ATC SLA-230-ASA	230 VAC	Socketable	190 V AC	270 V AC	10 A, 240 VAC	0.5 s	0.25 Sec	Phase Loss, Phase Sequence, Voltage Sensing AC	Energized High/Low
ATC SLA-230-ALE	230 VAC	Chassis Mount	190 V AC	270 V AC	5 A, 240 VAC	0.5 s	0.25 Sec	Phase Loss, Phase Sequence, Voltage Sensing AC	Energized High/Low	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 115.98

General part information

Phase Loss, Phase Sequence, Voltage Sensing AC 230VAC

Technical documentation and resources

No documents available
