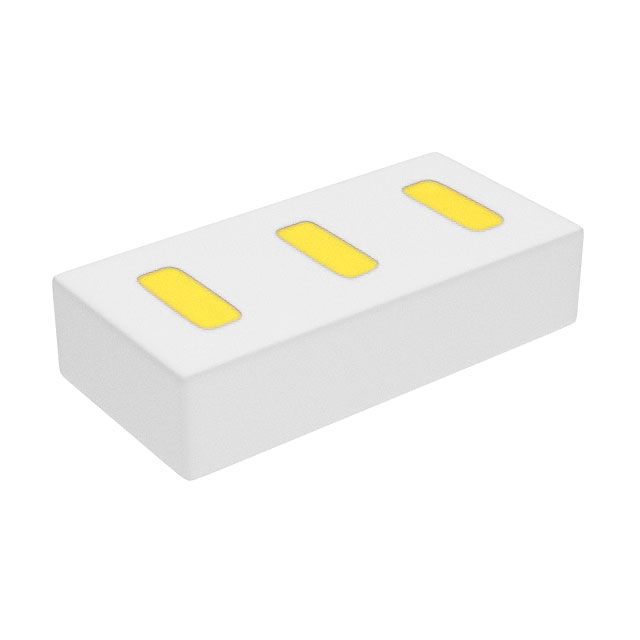

CSD13385F5
Active12-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE LGA 0.8 MM X 1.5 MM, 19 MOHM, GATE ESD PROTECTION 3-PICOSTAR -55 TO 150
Deep-Dive with AI
Search across all available documentation for this part.
CSD13385F5
Active12-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE LGA 0.8 MM X 1.5 MM, 19 MOHM, GATE ESD PROTECTION 3-PICOSTAR -55 TO 150
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD13385F5 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4.3 A |
| Drain to Source Voltage (Vdss) | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 5 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 674 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Power Dissipation (Max) [Max] | 500 mW |
| Rds On (Max) @ Id, Vgs | 19 mOhm |
| Supplier Device Package | 3-PICOSTAR |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) [Max] | 8 V |
| Vgs(th) (Max) @ Id [Max] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 0.27 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.18 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
| CHIPMALL.COM LIMITED | N/A | 5 | $ 0.11 | |
| 150 | $ 0.11 | |||
| Chip1Stop | N/A | 5 | $ 0.41 | |
| 50 | $ 0.25 | |||
| 100 | $ 0.16 | |||
| 200 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.10 | |||
| DigiKey | N/A | 1 | $ 0.45 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| 3000 | $ 0.10 | |||
| 6000 | $ 0.10 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| LCSC | N/A | 5 | $ 0.15 | |
| 50 | $ 0.13 | |||
| 150 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 3000 | $ 0.10 | |||
| 6000 | $ 0.09 | |||
| Mouser Electronics | N/A | 1 | $ 0.41 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| 3000 | $ 0.10 | |||
| 24000 | $ 0.09 | |||
| 45000 | $ 0.09 | |||
| TME | N/A | 1 | $ 0.37 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.21 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 3000 | $ 0.10 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.20 | |
| 100 | $ 0.14 | |||
| 250 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| Verical | N/A | 60 | $ 0.18 | |
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
CSD13385F5 Series
12-V, N channel NexFET™ power MOSFET, single LGA 0.8 mm x 1.5 mm, 19 mOhm, gate ESD protection
| Part | Vgs(th) (Max) @ Id [Max] | Gate Charge (Qg) (Max) @ Vgs | Supplier Device Package | Rds On (Max) @ Id, Vgs | Technology | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Power Dissipation (Max) [Max] | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) [Max] | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD13385F5 | 1.2 V | 5 nC | 3-PICOSTAR | 19 mOhm | MOSFET (Metal Oxide) | 150 °C | -55 °C | Surface Mount | 500 mW | 1.8 V, 4.5 V | 674 pF | 12 V | 4.3 A | 8 V | N-Channel |
Description
General part information
CSD13385F5 Series
This 12-V, 15-mΩ, N-Channel FemtoFET™ MOSFET technology is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing a significant reduction in footprint size.
.
.
