Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LP339N/PB | LP339 Series |
|---|---|---|
| Current - Input Bias (Max) [Max] | 0.025 çA | 0.025 çA |
| Current - Output (Typ) | - | 30 mA |
| Current - Quiescent (Max) [Max] | 100 µA | 100 µA |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Elements | 4 | 4 |
| Operating Temperature [Max] | 70 ░C | 70 ░C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Type | MOS, Open-Collector, CMOS | MOS, Open-Collector, CMOS |

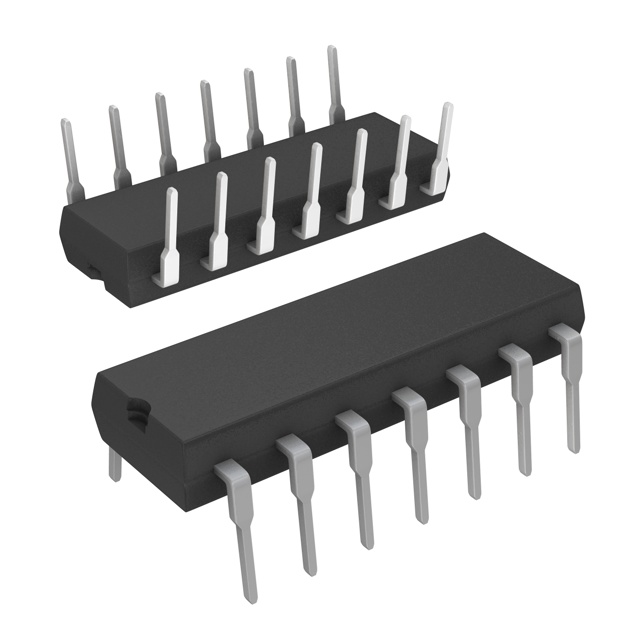

| Package / Case | 14-DIP | 14-SOIC, 14-DIP |
| Package / Case | 7.62 mm | 3.9 - 7.62 mm |
| Package / Case | 0.3 in | 0.154 - 0.3 in |
| Type | General Purpose | General Purpose |
| Voltage - Input Offset (Max) | 5 mV | 5 mV |
| Voltage - Supply, Single/Dual (±) | ±1V | ±1V |
| Voltage - Supply, Single/Dual (±) | 18 V | 18 V |
| Voltage - Supply, Single/Dual (±) [Max] | 36 V | 15 - 36 V |
| Voltage - Supply, Single/Dual (±) [Min] | 2 V | -1.5 - 3 V |
| Voltage - Supply, Single/Dual (Ý) | - | 15 - 30 V |
| Voltage - Supply, Single/Dual (Ý) | - | 1.5 - 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LP339 Series
Ultra-Low Power Quad Comparator
| Part | Current - Quiescent (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) [Max] | Output Type | Type | Mounting Type | Package / Case | Package / Case | Package / Case | Voltage - Input Offset (Max) | Current - Output (Typ) | Number of Elements | Current - Input Bias (Max) [Max] | Voltage - Supply, Single/Dual (±) | Voltage - Supply, Single/Dual (±) | Voltage - Supply, Single/Dual (Ý) [Max] | Voltage - Supply, Single/Dual (Ý) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LP339DRG4The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C.
The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C. | 100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | ||||
Texas Instruments LP339N/NOPBThe LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications.
The LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications. | 100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Through Hole | 7.62 mm | 0.3 in | 14-DIP | 5 mV | 30 mA | 4 | 0.025 çA | ±1V | 18 V | ||
100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | |||||
100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | |||||
Texas Instruments LP339NThe LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C.
The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C. | 100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Through Hole | 7.62 mm | 0.3 in | 14-DIP | 5 mV | 30 mA | 4 | 0.025 çA | ||||
Texas Instruments LP339MX/NOPBThe LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications.
The LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications. | 100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 4 | 0.025 çA | ±1V | 18 V | |||
100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 4 | 0.025 çA | ±1V | 18 V | ||||
Texas Instruments LP339DThe LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C.
The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C. | 100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | ||||
100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Through Hole | 7.62 mm | 0.3 in | 14-DIP | 5 mV | 4 | 0.025 çA | ±1V | 18 V | ||||
100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 4 | 0.025 çA | ±1V | 18 V | ||||
100 µA | 70 ░C | 0 °C | -1.5 V, 3 V | 15 V, 30 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | |||||
Texas Instruments LP339DRThe LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C.
The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages. Operation from split power supplies is also possible and the ultralow power supply drain current is independent of the power supply voltage.
Applications include limit comparators, simple analog-to-digital converters, pulse generators, squarewave generators, time delay generators, voltage controlled oscillators, multivibrators, and high-voltage logic gates. The LP239, LP339, LP2901 were specifically designed to interface with the CMOS logic family. The ultra-low power-supply current makes these products desirable in battery-powered applications.
The LP239 is characterized for operation from –25°C to 85°C. The LP339 is characterized for operation from 0°C to 70°C. The LP2901 is characterized for operation from –40°C to 85°C. | 100 µA | 70 ░C | 0 °C | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 30 mA | 4 | 0.025 çA | 15 V, 30 V | 1.5 V, 3 V | ||||
Texas Instruments LP339M/NOPBThe LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications.
The LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications. | 100 µA | 70 ░C | 0 °C | 2 V | 36 V | CMOS, MOS, Open-Collector | General Purpose | Surface Mount | 3.9 mm | 0.154 in | 14-SOIC | 5 mV | 4 | 0.025 çA | ±1V | 18 V |
Description
General part information
LP339 Series
The LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
Applications include limit comparators, simple analog-to-digital converters, pulse, square and time delay generators; VCO's; multivibrators; high voltage logic gates. The LP339 was specifically designed to interface with the CMOS logic family. The ultra-low supply current makes the LP339 valuable in battery powered applications.
The LP339 consists of four independent voltage comparators designed specifically to operate from a single power supply and draw typically 60 µA of power supply drain current over a wide range of power supply voltages. Operation from split supplies is also possible and the ultra-low power supply drain current is independent of the power supply voltage. These comparators also feature a common-mode range which includes ground, even when operated from a single supply.
