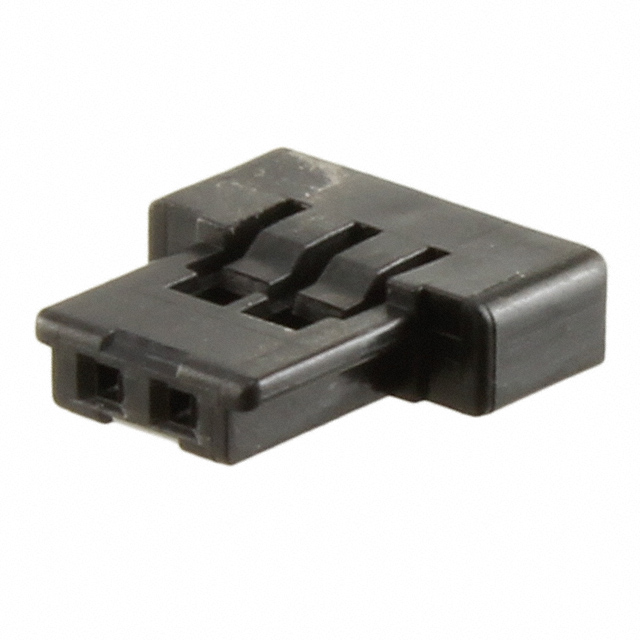

FI-S2S

Active

JAE Electronics

CONN PLUG HSG 2POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 2POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S2S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Insulation Color	Contact Finish - Mating	Contact Type	Number of Positions	Features	Contact Finish - Post	Shrouding	Material Flammability Rating	Connector Type	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Fastening Type	Style	Number of Rows	Mounting Type	Insulation Height	Insulation Height	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Note	Insulation Material	Color	Contact Termination	Pitch [x]	Pitch [x]
JAE Electronics FI-S2P-HFE-E1500	Beige	Gold	Male Pin	2	Solder Retention	Tin or Tin-Alloy	Shrouded - 4 Wall	UL94 V-0	Receptacle	Copper Alloy	Solder	1.25 mm	0.049 in	1 A	Square	Friction Lock	Board to Cable/Wire	1	Surface Mount Right Angle	1.8 mm	0.071 "	All	-40 °C	80 C	200 V
JAE Electronics FI-S2P-HFE	Beige	Gold	Male Pin	2	Solder Retention	Tin or Tin-Alloy	Shrouded - 4 Wall	UL94 V-0	Receptacle	Copper Alloy	Solder	1.25 mm	0.049 in	1 A	Square	Friction Lock	Board to Cable/Wire	1	Surface Mount Right Angle	1.8 mm	0.071 "	All	-40 °C	80 C	200 V
JAE Electronics FI-S2S			Female Socket	2					Plug							Friction Lock		1	Free Hanging (In-Line)							Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Crimp	0.049 in	1.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
