FI-S2P-HFE

Active

JAE Electronics

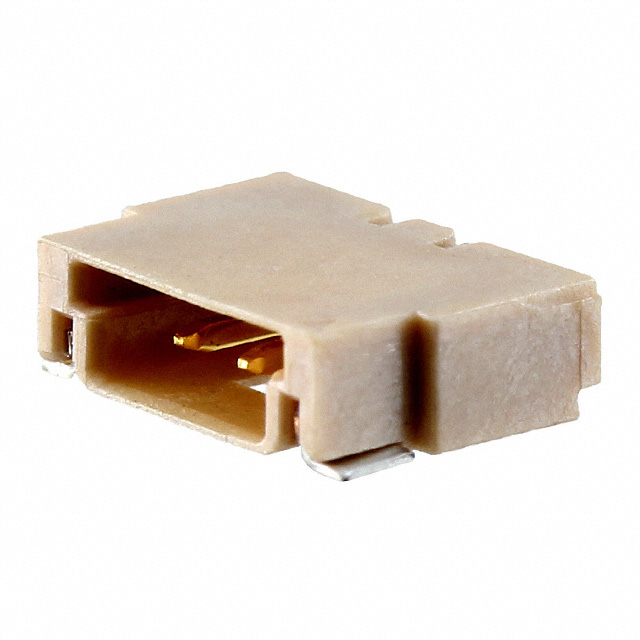

CONN HEADER SMD R/A 2POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 2POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S2P-HFE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Insulation Color	Contact Finish - Mating	Contact Type	Number of Positions	Features	Contact Finish - Post	Shrouding	Material Flammability Rating	Connector Type	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Fastening Type	Style	Number of Rows	Mounting Type	Insulation Height	Insulation Height	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Note	Insulation Material	Color	Contact Termination	Pitch [x]	Pitch [x]
JAE Electronics FI-S2P-HFE-E1500	Beige	Gold	Male Pin	2	Solder Retention	Tin or Tin-Alloy	Shrouded - 4 Wall	UL94 V-0	Receptacle	Copper Alloy	Solder	1.25 mm	0.049 in	1 A	Square	Friction Lock	Board to Cable/Wire	1	Surface Mount Right Angle	1.8 mm	0.071 "	All	-40 °C	80 C	200 V
JAE Electronics FI-S2P-HFE	Beige	Gold	Male Pin	2	Solder Retention	Tin or Tin-Alloy	Shrouded - 4 Wall	UL94 V-0	Receptacle	Copper Alloy	Solder	1.25 mm	0.049 in	1 A	Square	Friction Lock	Board to Cable/Wire	1	Surface Mount Right Angle	1.8 mm	0.071 "	All	-40 °C	80 C	200 V
JAE Electronics FI-S2S			Female Socket	2					Plug							Friction Lock		1	Free Hanging (In-Line)							Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Crimp	0.049 in	1.25 mm
