Specification	ERM8-010-05.0-L-DV-DS-K-TR

Connector Type	Differential Pair Array, MALE
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Board Guide, Pick and Place
Height Above Board	0.351 in
Mated Stacking Height Options	10mm, 15mm, 12mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.031 in

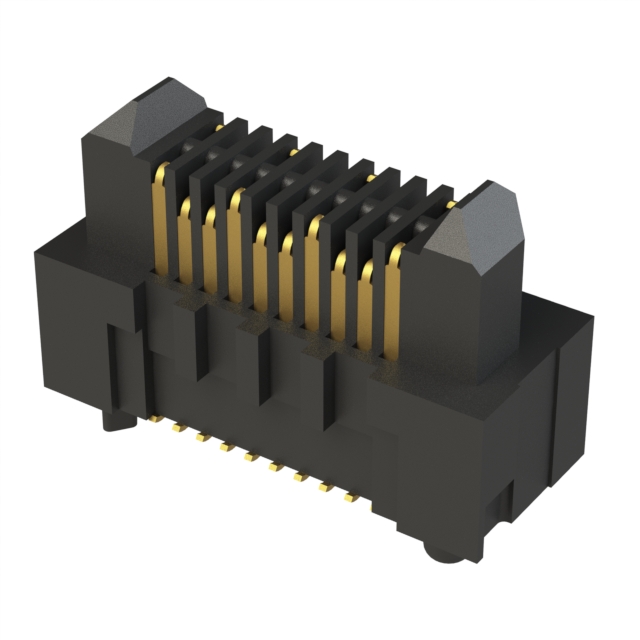

ERM8-010 Series

Part	Mounting Type	Contact Finish	Connector Type	Features	Contact Finish Thickness	Height Above Board	Pitch	Number of Positions	Number of Rows	Mated Stacking Height Options
Samtec Inc. ERM8-010-01-S-D-RA-L-K-TR	Right Angle Surface Mount	Gold	Center Strip Contacts Header	Board Guide Latches Mounting Flange Pick and Place	30 µin	0.246 in	0.031 in	20	2
Samtec Inc. ERM8-010-02.0-S-DV	Surface Mount	Gold	Center Strip Contacts Header	Board Guide	30 µin	0.235 in	0.031 in	20	2	12mm 7mm 9mm
Samtec Inc. ERM8-010-05.0-S-DV-EGP-K-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Mating Guide Pick and Place	30 µin	0.351 in	0.031 in	20	2	10mm 12mm 15mm
Samtec Inc. ERM8-010-01-L-D-RA-L-K-TR	Right Angle Surface Mount	Gold	Center Strip Contacts Header	Board Guide Latches Mounting Flange Pick and Place	10 Ąin	0.246 in	0.031 in	20	2
Samtec Inc. ERM8-010-02.0-L-DV-K-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Pick and Place	10 Ąin	0.235 in	0.031 in	20	2	12mm 7mm 9mm
Samtec Inc. ERM8-010-05.0-S-DV-L-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Latches	30 µin	0.351 in	0.031 in	20	2	10mm 12mm 15mm
Samtec Inc. ERM8-010-05.0-S-DV-DS-L-TR	Surface Mount	Gold	Differential Pair Array MALE	Board Guide Latches	30 µin	0.351 in	0.031 in	20	2	10mm 12mm 15mm
Samtec Inc. ERM8-010-05.0-L-DV-L-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Latches	10 Ąin	0.351 in	0.031 in	20	2	10mm 12mm 15mm
Samtec Inc. ERM8-010-09.0-L-DV-K-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Pick and Place	10 Ąin	0.508 in	0.031 in	20	2	14mm 16mm 19mm
Samtec Inc. ERM8-010-05.0-S-DV-L-K-TR	Surface Mount	Gold	Center Strip Contacts Header	Board Guide Latches Pick and Place	30 µin	0.351 in	0.031 in	20	2	10mm 12mm 15mm
